Hedland

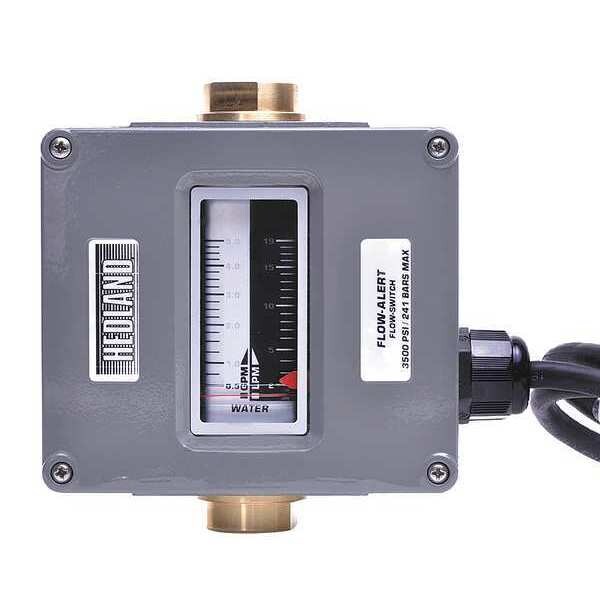

Flowmeter, GPM/LPM 0.5 - 5.0 / 2-19

product price: $581.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Variable Area
  • Housing Material Aluminum
  • For Pipe Size 1/2 in
  • Flow Material Water, Other Liquids
  • Connection Size 1/2 in
See all product information

Product Information

Dimensions

For Pipe Size 1/2 in
Connection Size 1/2 in
Connection Size (In.) 1/2 FNPT
Height (In.) 3
Width (In.) 6"
Length (In.) 6-5/8"

Details

Item Flow Switch
Type Variable Area
Housing Material Aluminum
Flow Material Water, Other Liquids
Connection Type FNPT
Max. Viscosity 500 SSU
Wetted Materials Brass
Flow Range 0.5 to 5 gpm
Pressure Drop - 100% Flow (PSI) 6.00 psi
Max. Voltage 250
Flow Range @ GPM/LPM 0.5 to 5 / 2 to 19
Chamber Material Brass
Pressure Drop - 50% Flow (PSI) 3.00 psi
Seal Material Viton
Max. Pressure (PSI) 3,500 psi
Specific Gravity 1.000
Max. Temp. (F) 240
Accuracy (%) +/-2% Full Scale
Switch Position Normally Closed, Normally Open
Flow Rate - Minimum 0.5 gpm
Switch Type SPDT
Contact Rating (AC) 10 A @ 250V
Media Temperature - Maximum 240 Degrees F
Set Point Configuration Adjustable
Wetted Material Brass
Switch Enclosure NEMA 12, NEMA 13
Flow Rate - Maximum 5 gpm
Flow Switch Type Piston
Media Temperature - Minimum -20 Degrees F
Contact Rating (DC) 0.5 A @ 125V DC

Description

Flow Switch, Connection Size 1/2 in, Connection Type FNPT, Contact Rating (AC) 10 A @ 250V, Contact Rating (DC) 0.5 A @ 125V DC, Flow Rate - Maximum 5 gpm, Flow Rate - Minimum 0.5 gpm, Flow Switch Type Piston, For Pipe Size 1/2 in, Housing Material Aluminum, Media Temperature - Maximum 240 Degrees F, Media Temperature - Minimum -20 Degrees F, Set Point Configuration Adjustable, Standards -, Switch Enclosure NEMA 12, NEMA 13, Switch Position Normally Closed, Normally Open, Switch Type SPDT

Restrictions

  • *** This is a restricted item. It cannot be used in the USA for potable water applications.
