Hedland

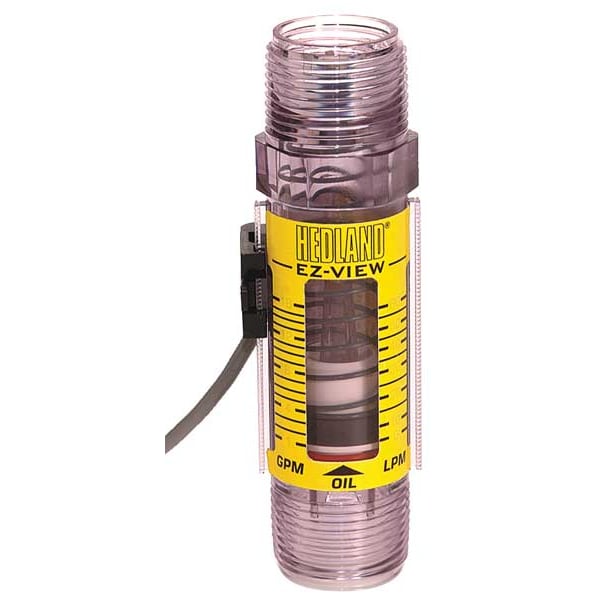

Flowmeter, GPM/LPM 0.5 - 4.0 / 2-15

product price: $101.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Variable Area
  • Housing Material PSU
  • For Pipe Size 1 in
  • Connection Size 1 in
  • Flow Material Other Liquids, Water
See all product information

Product Information

Dimensions

For Pipe Size 1 in
Connection Size 1 in
Height 1 5/8 in
Width 1 5/8 in
Length 5 1/4 in
Length (In.) 5-1/4"
Width (In.) 1-5/8"
Connection Size (In.) 1 MNPT
Height (In.) 1-5/8
Overall Height 1.4 in
Overall Length 5.3 in
Overall Width 1.7 in

Details

Item Mechanical Flowmeter
Type Variable Area
Housing Material PSU
Flow Material Other Liquids, Water
Connection Type NPTF
Max. Pressure 325 psi
Max. Viscosity 500 SUS
Wetted Materials Buna-N, C360 Brass, PH15-7MO Stainless Steel, Polysulfone, PVC, Strontium, T300 Stainless Steel
Flow Range 0.5 to 4 gpm
Fluid Temp. Range 32 Degrees to 250 Degrees F
Seal Material Buna-N
Standards ANSI/ASME B1.20.1
Max. Pressure (PSI) 325
Specific Gravity 1.0
Flow Range @ GPM/LPM 0.5 to 4 / 2 to 15
Max. Temp. (F) 250
Chamber Material Polysulfone
Accuracy (%) +/-5.0 Full Scale
Display Type Scale
Product Type Flow Meter
Includes Flow Rate Adjustment Knob No
Viscosity - Maximum 500 SUS
Operating Pressure - Maximum 325 psi
Includes Totalizer No
O-Ring Material Buna-N
Media Temperature - Maximum 250 Degrees F
Unit Of Measure Gallons, Liters
Accuracy +/-5%
Flowmeter Type Variable Area
Mounting Orientation Universal
Includes Pressure Gauge No
Compatible Flow Material Water
Wetted Material PSU
Flow Rate - Maximum 4 gpm
Flow Rate - Minimum 0.5 gpm
Media Temperature - Minimum 32 Degrees F

Description

Mechanical Flowmeter, Product Type Flow Meter, Flowmeter Type Variable Area, Accuracy +/-5 Percent, Connection Size 1 in, Connection Type NPTF, Compatible Flow Material Water, Media Temperature - Maximum 250 Degrees F, Media Temperature - Minimum 32 Degrees F, Viscosity - Maximum 500 SUS, Voltage - Maximum Not Applicable, Housing Material PSU, Rotor Material Not Applicable, O-Ring Material Buna-N, Seal Material Buna-N, Shaft Material Not Applicable, Wetted Material PSU
