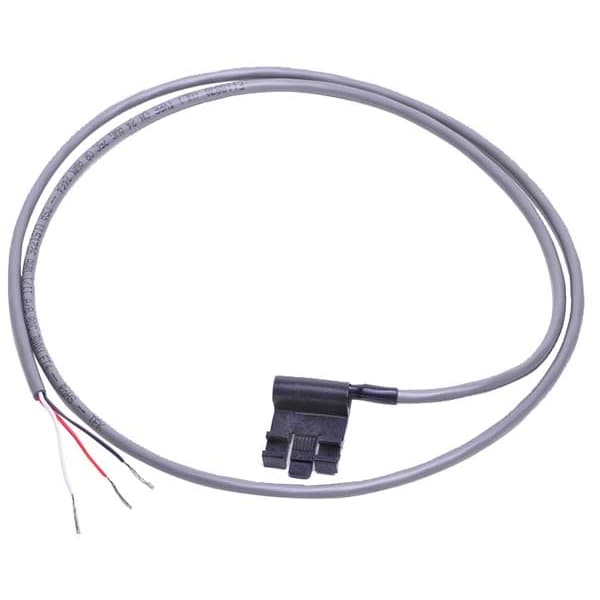

Reed Switch, Reed Switch Form-C
- Mfr # H526-008
- Zoro # G1443671
product price:Â
$
67.15
/ea
Key Features
Type
Form-C, SPDT
Min. Current
0.25 A
Housing Material
Polycarbonate
Contact Ratings
0.25A @ 175 V DC 5 Watts max Resistive Load
Operating Temp. (F)
32 Degrees to 250 Degrees F
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- H526-008
- Zoro #
- G1443671
- UPC #
- -
- Country of Origin
- United States
- Item
- Reed Switch
- Type
- Form-C, SPDT
- Min. Current
- 0.25 A
- Housing Material
- Polycarbonate
- Contact Ratings
- 0.25A @ 175 V DC 5 Watts max Resistive Load
- Operating Temp. (F)
- 32 Degrees to 250 Degrees F
- Connection Type
- NPT
- Voltage
- 175V DC
- Cable
- 3 ft, 2-Wire #24 AWG Black PVC Jacketed Pig-Tail
- NEMA Rating
- 12 and 13 (IP65)
- Agency Compliance
- CE Certified
- For Use With
- 1/2 in to 2 in Connection Sensored Flowmeters
- Media Temperature - Minimum
- 32 Degrees F
- Set Point Configuration
- Adjustable
- Frequency
- 50 Hz, 60 Hz
- Media Temperature - Maximum
- 250 Degrees F
- Switch Position
- Normally Closed, Normally Open
- Contact Rating (DC)
- 0.25 A @ 175V DC
- Switch Enclosure
- NEMA 12, NEMA 13
- Flow Switch Type
- Thermal-Dispersion
Description
Reed Switch, Connection Type NPT, Contact Rating (DC) 0.25 A @ 175V DC, Flow Switch Type Thermal-Dispersion, Frequency 50 Hz, 60 Hz, Housing Material Polycarbonate, Media Temperature - Maximum 250 Degrees F, Media Temperature - Minimum 32 Degrees F, Set Point Configuration Adjustable, Switch Enclosure NEMA 12, NEMA 13, Switch Position Normally Closed, Normally Open
