Shop TELEMECANIQUE SENSORS

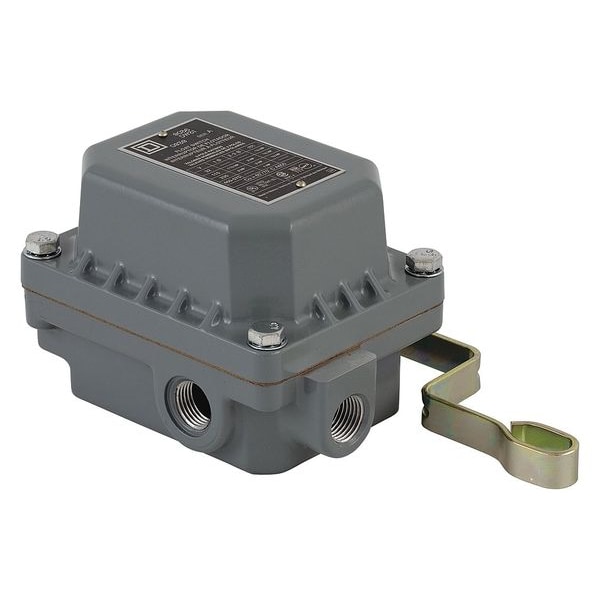

DPST Open Liquid Level Switch Close on Rise 575VAC

  • Mfr # 9036DR31

  • Zoro # G2668057

product price:
$
446.99
/ea
Free Shipping & Returns

Key Features

Voltage
575VAC
Amps
10 A
Float Length
7 in
Height
4.27 in
Overall Length
7.1 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9036DR31
Zoro #
G2668057
UPC #
785901064381
Country of Origin
Mexico

Dimensions

Float Length
7 in
Height
4.27 in
Overall Length
7.1 in
Float Dia.
7 in
Width
2.53 in
Conduit Size
2 3/4 in
Manufacturer Warranty Length
18 mo
Float Diameter
7 in
Overall Height
4.27 in
Overall Width
2.53 in

Details

Voltage
575VAC
Item
Open Liquid Level Switch
Amps
10 A
Float Travel
1 1/4 in
Electrical Connections
Screw Clamp
Float Switch Float Material
Stainless Steel
Max. Voltage
575
Float Material
Stainless Steel
Operating Temp. Range
-22 Degrees to 220 Degrees F
HP @ 1 Phase - 240V
3 hp
Contact Form
2NC
HP @ 1 Phase - 120V
2 hp
Switch Function
Close On Rise
NEMA Rating
7, 9
Float Switch Contact Form
DPST
Body Material
Aluminum
Mounting
Open Tank
VA Rating
460V AC
Max. Current
600 A
Float Position
Below
HP @ 3 Phase - 240V
5 hp
Float Rod Angle
Vertical
Series
9036D
Standards
CSA File No.LR26817, UL 508, UL E12443
Features
(2) Conduit Entries for 3/4 in-14 NPT
Product Type
Open Liquid Level Switch
Minimum Media Specific Gravity
0.85
Operating Temperature - Minimum
-22 Degrees F
Horsepower @ Single Phase - 120V AC
2 hp
Operating Temperature - Maximum
220 Degrees F
Mounting Style
Vertical
Horsepower @ Single Phase - 240V AC
3 hp
Electrical Connection
Screw-Clamp Terminal
Horsepower @ Three Phase - 240V AC
5 hp
NEMA Enclosure Rating
7, 9
Current Rating
600 A
Voltage Rating - Maximum
575 V AC
Current Rating - Maximum
600 A
Switch Structure
DPST

Description

Open Liquid Level Switch, Switch Function Close On Rise, Open Tank Mounting, Float Travel 1 1/4 in, NEMA Rating 7, 9, VA Rating 460V AC, Operating Temp. Range -22 Degrees to 220 Degrees F, Overall Length 7.1 in, Float Material Stainless Steel, Float Length 7 in, Float Dia. 7 in, Height 4.27 in, Width 2.53 in, Contact Form 2NC, Max. Current 600 A, Max. Voltage 575, HP @ 1 Phase - 120V 2 hp, HP @ 1 Phase - 240V 3 hp, HP @ 3 Phase - 240V 5 hp, Body Material Aluminum, Float Position Below
