Heidolph

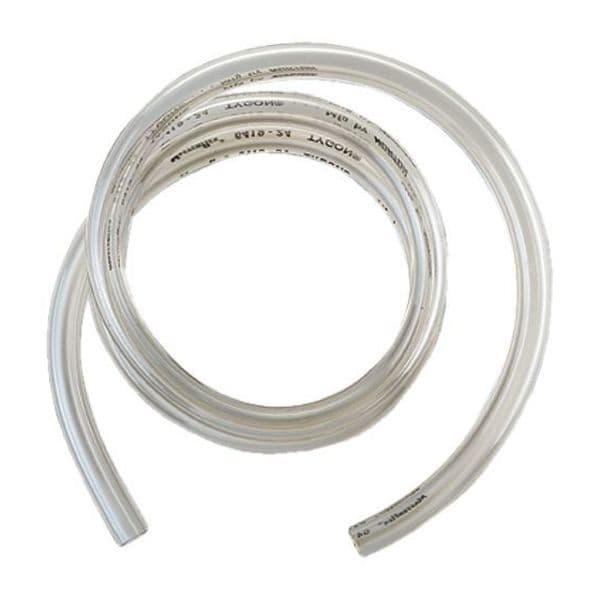

Food Tubing, 6.3mm I.D., 3.28 ft., 7 psi

product price: $78.55
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Tube Material PVC
  • Inside Dia. 6.3 mm
  • Outside Dia. 9.5 mm
  • Wall Thickness 1.6 mm
  • Max. Pressure 7 psi
See all product information

Product Information

Dimensions

Inside Dia. 6.3 mm
Outside Dia. 9.5 mm
Tube Length 3 ft
Outside Diameter 9.5 mm
Inside Diameter 6.4 mm
Overall Length 3 ft

Details

Tube Material PVC
Wall Thickness 1.6 mm
Max. Pressure 7 psi
Tube Color Clear
Temp. Range -108 Degrees to 159 Degrees F
SAE or Metric Metric
Flexibility Flexible
Item Tubing
Application Food Industry, Well Suited to Products with High Fat Content
Standards FDA 21 CFR 177.2600, GLP, USP Class VI
Material Thermoplastic
Color Clear
Features Oil-Free, Plasticizer-Free
Autoclavable Yes
Maximum Operating Pressure 1.5 bar (Short Time); 0.5 bar (Continuous)
Flow Application Single and Multi-Channel Pumps
Material Trade Name Tygon
Maximum Operating Temperature 159.8 Degrees F
Minimum Operating Temperature -108.4 Degrees F
For Fluid Type Polar Solvents
System of Measurement Metric
Clarity Clear
Resistance Properties Chemical Resistant
Industry Application Food Service

Description

Tubing, Color Clear, Inside Diameter 6.4 mm, Material Thermoplastic, Material Trade Name Tygon, Maximum Operating Pressure 1.5 bar (Short Time); 0.5 bar (Continuous), Maximum Operating Temperature 159.8 Degrees F, Outside Diameter 9.5 mm, Overall Length 3 ft, PEX Type Not Applicable, Resistance Properties Chemical Resistant, Standards FDA 21 CFR 177.2600, GLP, USP Class VI, Wall Thickness 1.6 mm, Autoclavable Yes, Clarity Clear

Restrictions

  • *** This is a restricted item. It cannot be used in the USA for potable water applications.
