Heidolph

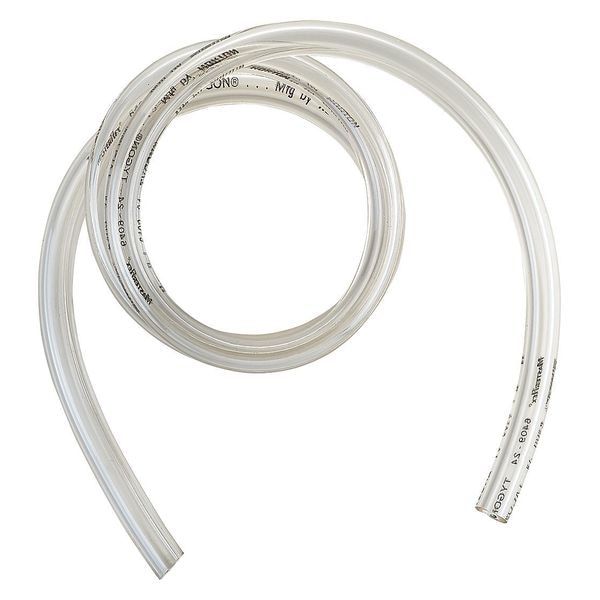

Standard Tubing, 6.3mm I.D., 3.28 ft, 7 psi

product price: $69.15
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Tube Material PVC
  • Inside Dia. 6.3 mm
  • Outside Dia. 9.5 mm
  • Wall Thickness 1.6 mm
  • Max. Pressure 7 psi
See all product information

Product Information

Dimensions

Inside Dia. 6.3 mm
Outside Dia. 9.5 mm
Tube Length 3 ft
Inside Diameter 6.4 mm
Overall Length 3 ft
Outside Diameter 9.5 mm

Details

Tube Material PVC
Wall Thickness 1.6 mm
Max. Pressure 7 psi
Tube Color Clear
Flexibility Flexible
Application General Laboratory
SAE or Metric Metric
Temp. Range -58 Degrees to 167 Degrees F
Standards FDA 21 CFR 177.2601, GLP
Item Tubing
Features Low Gas Permeability
Color Clear
Material Thermoplastic Soft PVC
Minimum Operating Temperature -58 Degrees F
Flow Application Single and Multi-Channel Pumps
For Fluid Type Acids, Lyes, Solvents
Autoclavable Yes
Maximum Operating Pressure 1.5 bar (Short Time); 0.5 bar (Continuous)
Material Trade Name Tygon
Clarity Clear
System of Measurement Metric
Maximum Operating Temperature 167 Degrees F

Description

Tubing, Application General Laboratory, Color Clear, Inside Diameter 6.4 mm, Material Thermoplastic Soft PVC, Material Trade Name Tygon, Maximum Operating Pressure 1.5 bar (Short Time); 0.5 bar (Continuous), Maximum Operating Temperature 167 Degrees F, Outside Diameter 9.5 mm, Overall Length 3 ft, PEX Type Not Applicable, Standards FDA 21 CFR 177.2601, GLP, Wall Thickness 1.6 mm, Autoclavable Yes, Clarity Clear

Restrictions

  • *** This is a restricted item. It cannot be used in the USA for potable water applications.
