  11. 10 Tons Hydraulic Service Jack 25-1/2" Max. Lifting H.
This item is Discontinued.

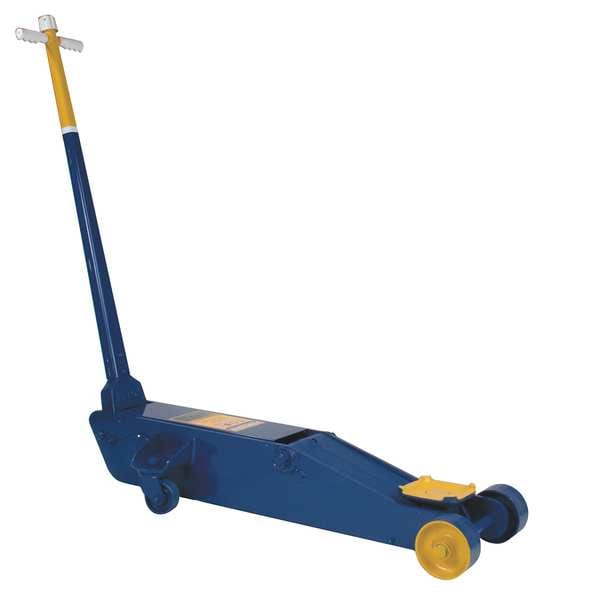

Hein-Werner 10 Tons Hydraulic Service Jack 25-1/2" Max. Lifting H. HW93660

10 Tons Hydraulic Service Jack 25-1/2" Max. Lifting H. (Discontinued)

  • Mfr # HW93660
  • Zoro # G2544211
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HW93660
Zoro #
G2544211
UPC #
047077024713
Country of Origin
United States

Dimensions

Lifting Height Max.
25-1/2"
Handle Length
53 in
Chassis Length
53 1/2 in
Base Width
20 1/2 in
Base Length
53 1/2 in
Caster Wheel Dia.
4 in
Base Height
9 1/4 in
Lifting Height Min.
Laboratory Scissor Jack - Steel Platform 6"x5"- Max 9 5/8", Min 2 1/2"
Length
53-1/2" (Chassis)
Chassis Height
9 1/4 in
Extended Height
25 in
Maximum Lift Height
25 1/2 in
Overall Width
20 1/2 in
Saddle Diameter
8 1/2 in
Wheel Diameter
4 in
Minimum Height
6 3/4 in
Minimum Lift Height
6 3/4 in
Chassis Width
20 1/2 in

Details

Standards
ANSI/ASME PALD
Number of Casters
2
Item
Hydraulic Service Jack
Application
Heavy-Duty
Features
Cast Lift Arm for Heavy Loads, Dual Piston Action Provides Speed to Contact and Power to Lift, Handle Adjusts to Three Pumping Positions, Large Full Swivel Saddle and Ball Bearing Caster, Lifting Trucks, Trailers, and Buses by the Axle, Differential, or Frame, Long Chassis for Hard to Reach Points, Sealed Hydraulic Unit Keeps Out Grit, Grime and Moisture, T-Handle with Release Knob for Exact Positioning of Load
Power Raise
18 3/4 in
Lifting Capacity
10 Tons
Handle Material
Steel
Material
Steel
Type
Long Chassis Manual Service Jack
For Use With
Trucks, Trailers and Buses
Base
53-1/2"L x 20-1/2"W
Product Type
Hydraulic Service Jack
Minimum Lift
6 3/4 in
Number of Wheels
2
Body Material
Steel
Lifting Actuator
Manual Handle
For Vehicle Type
Trucks
Caster Type
Swivel
Item Weight
420 lb
Maximum Lift
25 1/2 in
Load Capacity
10 ton
Jack Type
Floor Jack
Duty Rating
Heavy Duty
Handle Type
T-Handle
Power Source
Mechanical
Construction
Steel

Description

Trolley Floor Jacks, Jack Type Floor Jack, Load Capacity 10 ton, Body Material Steel, Lifting Actuator Manual Handle, Minimum Lift Height 6 3/4 in, Maximum Lift Height 25 1/2 in, Power Source Mechanical, Minimum Height 6 3/4 in, For Vehicle Type Trucks, Caster Type Swivel, Chassis Height 9 1/4 in, Chassis Length 53 1/2 in, Chassis Width 20 1/2 in, Extended Height 25 in
