  6. 4 Tons Air Hydraulic Service Jack 26-1/2" Max. Lifting H., 5-1/2" Min. Lifting H

This item is Discontinued.

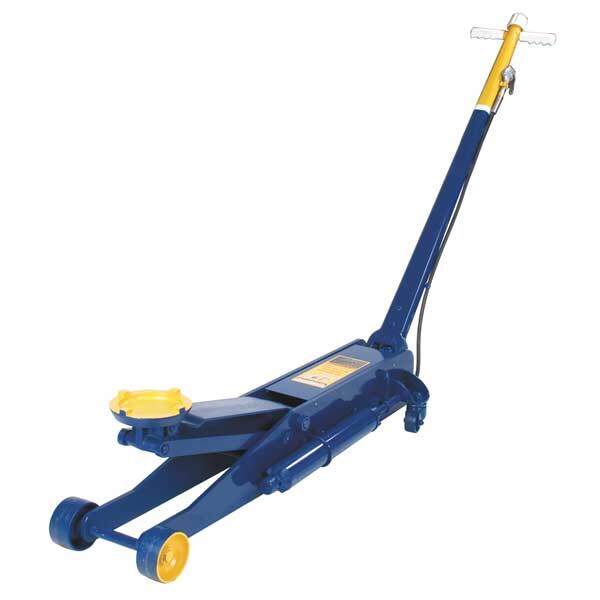

Hein-Werner 4 Tons Air Hydraulic Service Jack 26-1/2" Max. Lifting H., 5-1/2" Min. Lifting H HW93667

4 Tons Air Hydraulic Service Jack 26-1/2" Max. Lifting H., 5-1/2" Min. Lifting H (Discontinued)

  • Mfr # HW93667
  • Zoro # G1955265
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
HW93667
Zoro #
G1955265
UPC #
047077024737
Country of Origin
United States

Dimensions

Lifting Height Max.
26-1/2"
Base Height
8 3/4 in
Handle Length
51 3/4 in
Chassis Length
49 in
Base Length
49 in
Base Width
15 in
Caster Wheel Dia.
2 1/2 in
Lifting Height Min.
5-1/2"
Length
49" (Chassis)
Minimum Lift Height
5 1/2 in
Saddle Diameter
7 in
Extended Height
25 3/4 in
Wheel Diameter
2 1/2 in
Maximum Lift Height
26 1/2 in
Chassis Width
15 in
Minimum Height
5 in
Chassis Height
8 3/4 in

Details

Material
Steel
Lifting Capacity
4 Tons
Application
Heavy-Duty Loads
Standards
ANSI/ASME PALD
Item
Air Hydraulic Service Jack
Number of Casters
2
Features
Cast Lift Arm for Heavy Loads, Dual Piston Action Provides Speed to Contact and Power to Lift, Extra Long Chassis for Hard to Reach Points, Handle Adjusts to Three Pumping Positions, Sealed Hydraulic Unit Keeps Out Grit, Grime and Moisture, T-Handle with Release Knob for Positioning and Load Control
Handle Material
Steel
Power Raise
21 in
Type
Air/Manual Long Chassis Service Jack
For Use With
Mfr. No. HW93506
Base
49"L x 15" W
Product Type
Air Hydraulic Service Jack
Maximum Lift
26 1/2 in
Maximum Operating Pressure
140 psi
Handle Type
T-Handle
Duty Rating
Light Duty
Number of Wheels
2
Item Weight
237 lb
Minimum Lift
5 1/2 in
Load Capacity
4 ton
Lifting Actuator
Manual Handle
Body Material
Steel
Jack Type
Floor Jack
Power Source
Air/Mechanical
Construction
Steel

Description

Trolley Floor Jacks, Jack Type Floor Jack, Load Capacity 4 ton, Body Material Steel, Lifting Actuator Manual Handle, Minimum Lift Height 5 1/2 in, Maximum Lift Height 26 1/2 in, Power Source Air/Mechanical, Minimum Height 5 in, Chassis Height 8 3/4 in, Chassis Length 49 in, Chassis Width 15 in, Extended Height 25 3/4 in
