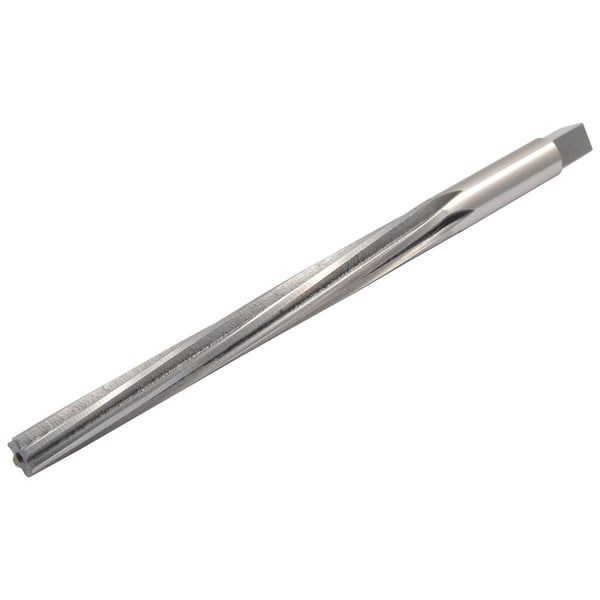

6/0 Spiral Flute High Speed Steel Taper Pin Reamer

HHIP 6/0 Spiral Flute High Speed Steel Taper Pin Reamer Spiral flute taper pin reamers are used to turn a straight hole into a tapered hole for standard taper pins. They are generally used by hand but can also be used with a machine. Recommended for applications where the reamer tends to wedge itself. The square on the end of the shank of the reamer is suitable for holding it in a tap wrench or vise. The free cutting action at high speeds produces a good finish and minimizes chip packing in the flutes. Shank diameter is 3/32, small end diameter is .0611 & large end diameter is .0806. Flute length is 15/16 and overall length is 1-15/16.

• •Spiral flute taper pin reamers are used to turn a straight hole into a tapered hole for standard taper pins.
• •They are generally used by hand but can also be used with a machine. Recommended for applications where the reamer tends to wedge itself.
• •The square on the end of the shank of the reamer is suitable for holding it in a tap wrench or vise. The free cutting action at high speeds produces a good finish and minimizes chip packing in the flutes.
• •Shank diameter is 3/32, small end diameter is .0611" & large end diameter is .0806".
• •Flute length is 15/16 and overall length is 1-15/16.
