  9. MILLER 260A Gas Engine-Driven Welder
This item is Discontinued.

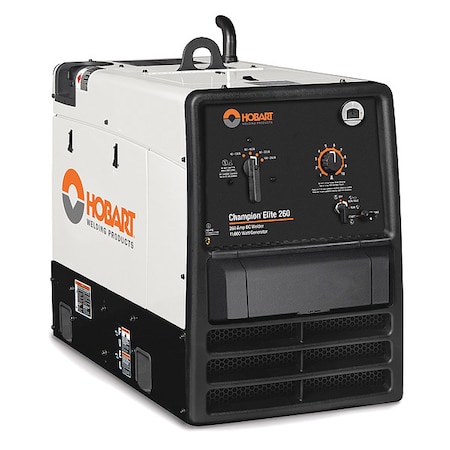

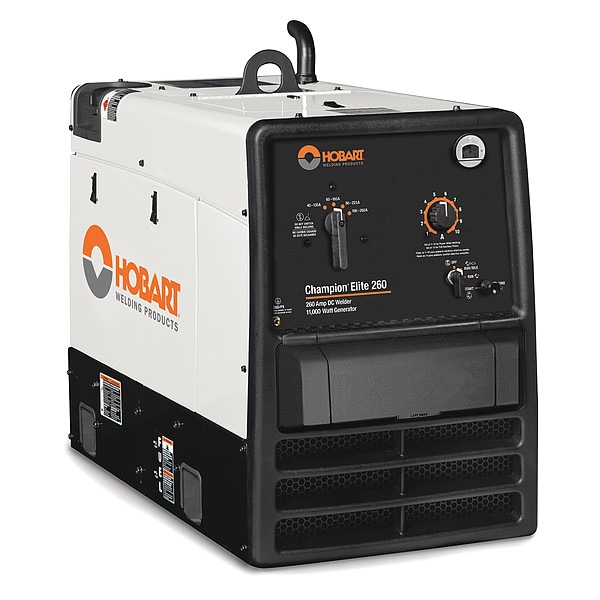

Hobart Welding Products MILLER 260A Gas Engine-Driven Welder 500577

MILLER 260A Gas Engine-Driven Welder (Discontinued)

  • Mfr # 500577
  • Zoro # G8345218
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
500577
Zoro #
G8345218
UPC #
715959677226
Country of Origin
United States

Dimensions

Overall Height (In.)
28 in
Overall Width (In.)
20 in
Overall Depth (In.)
41 in
Overall Height
28 in
Overall Width
20 in
Overall Depth
41 in

Details

Item
Engine-Driven Welder
Series
Champion(R) Elite
Input Voltage
25V AC
Polarity
DC
Amps DC
260 A
Welding Processes
Stick, TIG
Rated Output
260A @ 25V
Duty Cycle
260A @ 25V, 100%
OCV
80 V
Standards
CSA Approved
Hz
60
Welding Amp Range Low
40
Welding Range (Amps DC)
40-260
Features
12 Gallon Fuel Tank, 260 Amp DC Stick Welder, Welds 1/8 inch Up to 1/4 Mild Steel
Application
Fabrication, Farm, For Maintanence, Ranch, Repair, Structural Steel Work, Use As a Stand-Alone Generator
Phase
1
Welding Amp Range High
260
Input (Amps)
40 A
Output Range (Amps)
40 to 260
Output Amps @100% Duty Cycle
20 A
Includes
(1) 14-50R 240V Receptacle, (1) 6-50R 240V Receptacle, (2) 115V 20A Duplex GFCI Receptacles
For Material Type
Stainless Steel, Steel
Weight
523 lb
Max. Amperage Range (Stick)
150 A - 300 A
TIG Welding Maximum Output Current
260 A
Open Circuit Voltage
80 V DC
Stick Welding Minimum Output Current
40 A
Horsepower
23 hp
Generator Outlet Type
14-50R, 5-20R, 6-50R
Fuel Tank Capacity Range
10 gal - 20 gal
Horsepower Range
15 hp - 30 hp
Engine Brand
Kholer
Stick Welding Maximum Output Current
260 A
TIG Welding Minimum Output Current
40 A
Welding Mode
CC
Rated Output at Duty Cycle (Stick)
225 A @ 100%, 260 A @ 100%, 260 A @ 60%
TIG Welding Output @ Duty Cycle
225 A @ 25 V, 100% (AC), 260 A @ 25 V, 100% (DC), 260 A @ 25 V, 60% (AC)
Welder Type
with GFCI Receptacles
Fuel Tank Capacity
12 gal
Generator Outlets
20 A 120V GFCI 5-20R (4), 50 A 120/240V 14-50R, 50 A 240V 6-50R
Oil Capacity
1 1/2 qt
Color
White
Peak Auxiliary Power
11,000 W
Stick Welding Output @ Duty Cycle
225 A @ 25 V, 100% (AC), 260 A @ 25 V, 100% (DC), 260 A @ 25 V, 60% (AC)
Generator Fuel Type
Gasoline
Continuous Auxiliary Power
9,500 W
Model
500577
Welder Model Type
with GFCI Receptacles
Process
Stick Welding (SMAW)
brand-mfr model
HOBART - 500577

Description

Engine-Driven Welder, Color White, For Material Type Stainless Steel, Steel, Generator Fuel Type Gasoline, Phase Single-Phase, Polarity DC, Stick Welding Maximum Output Current 260 A, Stick Welding Minimum Output Current 40 A, Stick Welding Output @ Duty Cycle 225 A @ 25 V, 100 Percent (AC), 260 A @ 25 V, 100 Percent (DC), 260 A @ 25 V, 60 Percent (AC), TIG Welding Maximum Output Current 260 A, TIG Welding Minimum Output Current 40 A
