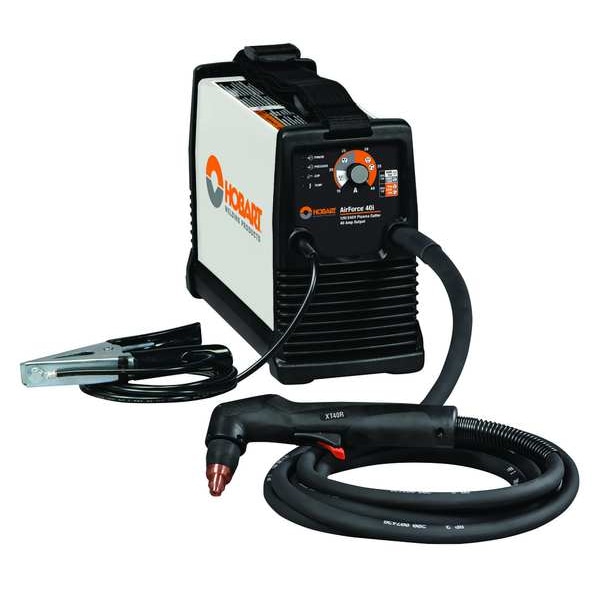

Hobart Welding Products MILLER AirForce 40i Plasma Cutter 500576 - main

MILLER AirForce 40i Plasma Cutter

  • Mfr # 500576

  • Zoro # G4069374

product price:  $2,492.99
/ea
Free Shipping & Returns

Key Features

Rated Output
1/2 A
Input Voltage
110/115/120/220/230/240V AC
Cutting Capacity (In.)
7/8 in
Cable Length (Ft.)
12
Series
AirForce 40i
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
500576
Zoro #
G4069374
UPC #
715959674812
Country of Origin
United States

Dimensions

Cable Length (Ft.)
12
Overall Depth (In.)
13.25 in
Overall Height (In.)
9 in
Overall Width (In.)
5 1/2 in
Overall Height
9 in
For Maximum Material Thickness
5/8 in
Ground Cord Length
12 ft
For Minimum Material Thickness
1/8 in
Cutting Cable Length
12 ft
Overall Depth
13.3 in
Overall Width
5.5 in
Power Cord Length
12 ft
For Material Thickness - Maximum
5/8 in
For Material Thickness - Minimum
1/8 in

Details

Item
Plasma Cutter
Rated Output
1/2 A
Input Voltage
110/115/120/220/230/240V AC
Cutting Capacity (In.)
7/8 in
Series
AirForce 40i
Input (Amps)
17.7/25.0/27.6A
Design
Portable
PSI
90-120
Application
Body Shops, Fabrication, Light Construction, Maintenance, Prototyping
OCV
400V DC
Includes
12 ft power cord with 240 V L6-30P twist lock plug for MVP adapters, 12 ft Work Cable with Clamp, 12 ft XT40R hand-held torch, Easy-to-connect, built in gas/air filter and regulator, Extra consumables (2 tips, shield deflector, and electrode), MVP adapters with 5-15P (120 V, 15 A) plug and 6-50P (240 V, 50 A) plug
Features
Automatic Gouging Consumable Detection, Compatible With Engine-Driven Welders, LVC Line Voltage Compensation, Pilot Arc Controller, Postflow Cooling Circuit, Power Factor Correction (PFC) Circuitry, Starts Without High Frequency
Duty Cycle
60 %
Color
White
Weight
21 lb
Plasma Cutting Minimum Output Current
14 A
Cutting Configuration
Plasma Cutting
Input Frequency
60 Hz
Maximum Pressure - Air Compressor
90 psi
Maximum Output Current
40 A
Plug Type
5-15P, 6-50P, L6-30P
Standards
CSA
Max. Input Current
20 A @ 120V DC (Single-Phase)
Plasma Cutter Model
500576
Plasma Torch Type
Handheld
Welding Processes
Plasma Cutting
Open Circuit Voltage
400 V DC
Plasma Cutting Output @ Duty Cycle
20 A @ 88V DC, 60% (120 V), 27 A @ 91V DC, 35% (120 V), 40 A @ 140V DC, 60% (240 V)
Phase
Single
For Material Type
Mild Steel
Required Air Flow
6 cfm
Amperage - Maximum
40 A
Process
Plasma Cutting
Rated Output @ Duty Cycle
20 A @ 88V DC, 60% (120 V), 27 A @ 91V DC, 35% (120 V), 40 A @ 140V DC, 60% (240 V)
Amperage - Minimum
14 A
Maximum Input Current
20 A @ 120V DC (Single-Phase)
Plasma Cutter Series
AirForce 40i
Minimum Input Air Flow Rate
6 cfm
Input Air Pressure - Minimum
90 psi
Input Air Pressure - Maximum
120 psi

Description

Plasma Cutter, Cutting Configuration Plasma Cutting, For Material Type Mild Steel, For Maximum Material Thickness 5/8 in, For Minimum Material Thickness 1/8 in, Input Frequency 60 Hz, Input Voltage 110/115/120/220/230/240V AC, Max. Input Current 20 A @ 120V DC (Single-Phase), Open Circuit Voltage 400 V DC, Phase Single, Plasma Cutter Model 500576, Maximum Output Current 40 A, Plasma Cutting Minimum Output Current 14 A
