This item is Discontinued.

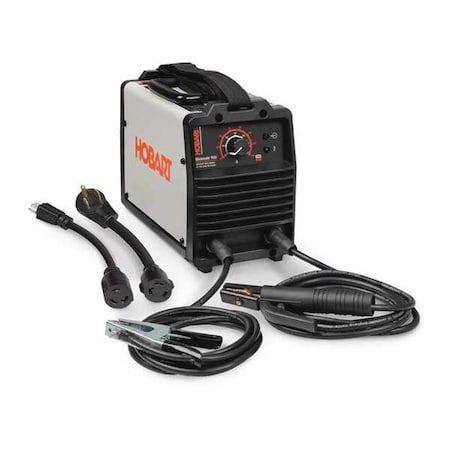

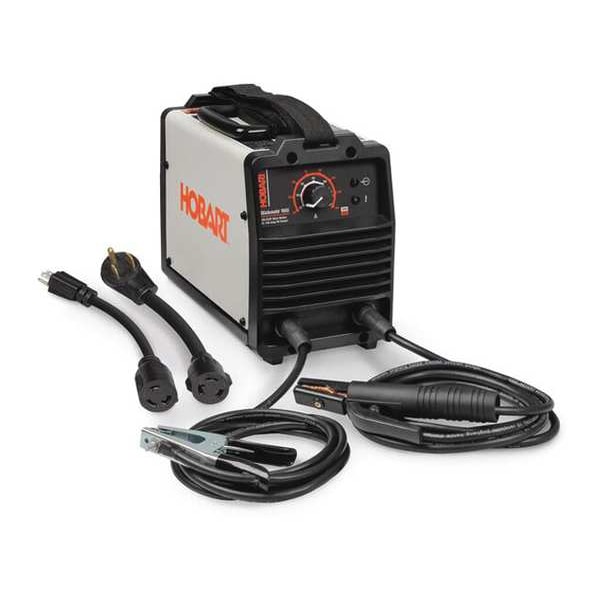

Hobart Welding Products Stick Welder, Stickmate Series, DC 20-160A 500570

Stick Welder, Stickmate Series, DC 20-160A (Discontinued)

  • Mfr # 500570
  • Zoro # G0211169
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
500570
Zoro #
G0211169
UPC #
715959640367
Country of Origin
China

Dimensions

Overall Height (In.)
10 1/2 in
Overall Width (In.)
7 1/8 in
Overall Depth (In.)
13 3/8 in
Power Cord Length
6 1/2 ft
Overall Depth
13.38 in
Overall Height
10.5 in
Electrode Cable Length
10 ft
Overall Width
7.25 in
Work Cable Length
10 ft

Details

Item
Stick Welder
Series
Stickmate 160i
Standards
ANSI/IEC, CSA
Includes
10 ft. Electrode Cable with Heavy-Duty Holder, 10 ft. Work Cable with Clamp, Adjustable Shoulder Strap
Input Voltage
110/115/120V AC, 220/230/240V AC
Features
Dual Voltage Capability With Multi-Voltage Plug Adapters, High Weld Output, Hobart 5/3/1 Industrial Warranty, Hot Start Technology
Phase
Single-Phase
Welding Processes
Stick Welding (SMAW)
Duty Cycle
30%
Welding Amp Range High
20 to 160
OCV
91
Output Amps @20% Duty Cycle
75A
Application
Farms, Maintenance and Repair, Metal Art, Ranches
Output Range (Amps)
20 to 80, 20 to 160
Input (Amps)
25, 37
Rated Output
AC: 65A/120V/20%, DC: 160A/240V/30%
Welding Range (Amps DC)
20-160
Polarity
DC
Hz
50/60
Welding Amp Range Low
20 to 80
Amps DC
20 to 160
Output Amps @100% Duty Cycle
35 A, 85 A
Plug Type
5-15P, 6-50P
Weight
15 lb
Open Circuit Voltage
91 V DC
Cable Connection Type
Dinse-Style
Color
White
For Material Type
Mild Steel
Effective Input Current
20.7 A @ 120V AC (Single-Phase), 27.8 A @ 240V AC (Single-Phase)
Power Cord Included
Yes
Stick Welding Maximum Output Current
160 A
Stick Welding Minimum Output Current
20 A
Welding Mode
CC
Input Frequency
50/60 Hz
Stick Welding Output @ Duty Cycle
160 A @ 240 V @ 30%, 65 A @120 V, 20%
Model
500570

Description

Stick Welder, Electrode Cable Length 10 ft, For Material Type Mild Steel, Input Frequency 50/60 Hz, Input Voltage 110/115/120V AC, 220/230/240V AC, Phase Single-Phase, Polarity DC, Model 500570, Stick Welding Maximum Output Current 160 A, Cable Connection Type Dinse-Style, Stick Welding Output @ Duty Cycle 160 A @ 240 V @ 30 Percent, 65 A @120 V, 20 Percent, Stick Welding Minimum Output Current 20 A, Welding Processes Stick Welding (SMAW), Welding Mode CC
