Hobo

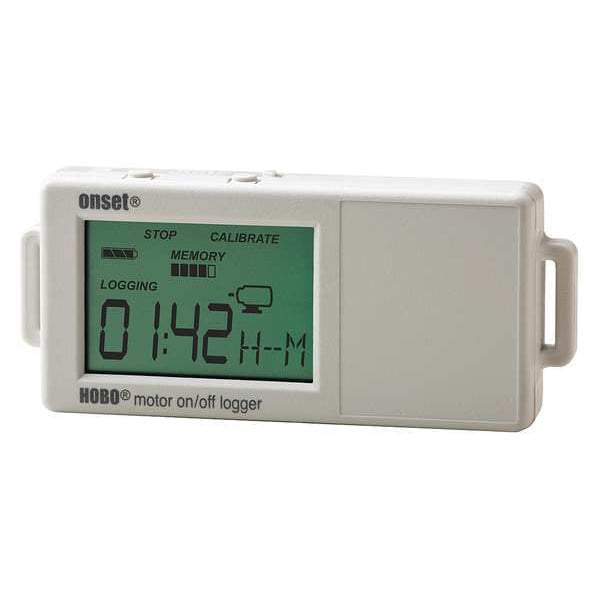

Data Logger, Motor On/Off, 128 KB

product price: $136.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Motor On/Off
  • Temp. Range (F) -4 Degrees to 158 Degrees F
  • Battery Life 1 yr
  • Sample Point Storage 128 KB
  • Time Intervals 1 sec to 18 hr
See all product information

Product Information

Dimensions

Width (In.) 1.44 in
Height (In.) 0.6 in
Manufacturers Warranty Length 12 mo
Connection Size USB
Depth (In.) 2.34 in
Overall Height 3 11/16 in
Manufacturer Warranty Length 12 mo
Overall Width 8 1/2 in
Overall Depth 5/8 in

Details

Type Motor On/Off
Temp. Range (F) -4 Degrees to 158 Degrees F
Battery Life 1 yr
Sample Point Storage 128 KB
Time Intervals 1 sec to 18 hr
Software Required Yes
Special Features RoHS Compliance
Alarm User Programmable
Calibration Certificate Generic Certificate of Calibration
Compatible With HOBOware(R), HOBOware(R) Pro Software Packages
Interface USB
Digital Readout yes
Item Data Logger
Waterproof IP50
Includes Command Strip, Double-Sided Tape, Hook and Loop Strip
Features Auto-Calibration of ON and OFF Thresholds Ensures Reliable Readings, Dual Internal Motor Sensors Gives Better Sensitivity for Well-Shielded Motors, External Input for Measuring Mechanical Contact Closures when Signal Strength is Low
Battery Voltage 3V
Compatible Operating Systems HOBOware(R)
Minimum Temperature Measured Degrees C -20 Degrees C
Minimum Temperature Measured Degrees F -4 Degrees F
Digital Display Screen Type LCD
Software Options Software Available Separately
Maximum Sampling Rate 18 hr
Battery Run Time 1 yr
Maximum Temperature Measured Degrees F 158 Degrees F
Battery Chemistry Lithium
Calibration Certificate Type Not Certified
Number of Batteries Required 1
Maximum Relative Humidity Measured 95 %
Parameters Measured Temperature Degrees C, Temperature Degrees F
Resistance Properties Water Resistant
Maximum Temperature Measured Degrees C 70 Degrees C
Minimum Sampling Rate 1 sec
Maximum Operating Temperature Degrees F 158 Degrees F
Power Source Battery
Alert Type Digital Display, Sound
Minimum Operating Temperature Degrees F -4 Degrees F
Minimum Relative Humidity Measured 0 %

Description

Data Logger, AC Voltage Accuracy Not Applicable, Alert Type Digital Display, Sound, Current Channels Not Applicable, Maximum Dew Point Measured Not Applicable, Minimum Dew Point Measured Not Applicable, For Phase Not Applicable, Calibration Certificate Type Not Certified, Minimum Sampling Rate 1 sec, Maximum AC Current Measurement Not Applicable, Maximum Relative Humidity Measured 95 Percent, Maximum AC Voltage Measured Not Applicable, Minimum Relative Humidity Measured 0 Percent

Restrictions

  • Hazardous material
