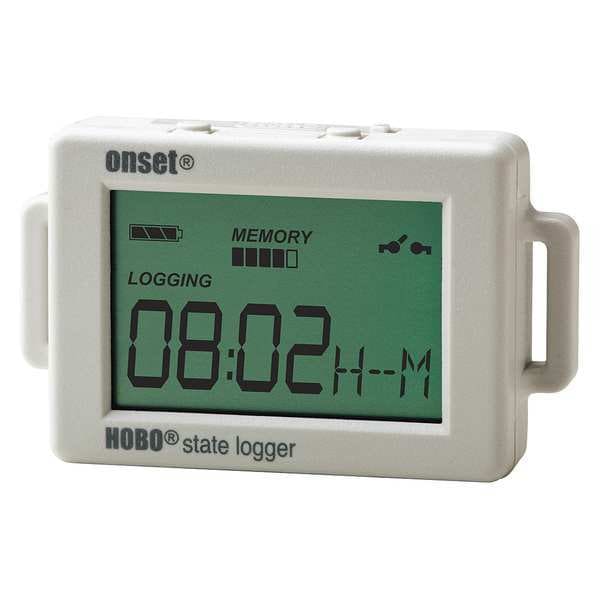

Data Logger, State, 128 KB

  • Mfr # UX90-001

  • Zoro # G9620956


product price: $141.99
/ea
Free Shipping & Returns

Key Features

Interface
USB
Includes
2.5 mm Input Cable, Command Strip, Double-Sided Tape, Hook and Loop Strip, Magnet with 2 Screws
Features
Compatible with a Wide Range of External Sensors, Internal Reed Switch can be used to Determine when a Door or Window is Open or Closed, One Logger with Four Recording Modes
Temp. Range (F)
-4 Degrees to 158 Degrees
Sample Point Storage
128 KB
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
UX90-001
Zoro #
G9620956
UPC #
-
Country of Origin
United States

Dimensions

Height (In.)
0.6 in
Depth (In.)
2.34 in
Connection Size
USB
Width (In.)
1.44 in
Manufacturers Warranty Length
12 mo
Overall Width
2 3/8 in
Manufacturer Warranty Length
12 mo
Overall Height
1 1/2 in
Overall Depth
5/8 in

Details

Item
Data Logger
Interface
USB
Includes
2.5 mm Input Cable, Command Strip, Double-Sided Tape, Hook and Loop Strip, Magnet with 2 Screws
Features
Compatible with a Wide Range of External Sensors, Internal Reed Switch can be used to Determine when a Door or Window is Open or Closed, One Logger with Four Recording Modes
Temp. Range (F)
-4 Degrees to 158 Degrees
Sample Point Storage
128 KB
Software Required
Yes
Alarm
User Programmable
Time Intervals
1 sec to 18 hr
Digital Readout
yes
Special Features
Measures dry contact open/close, RoHS Compliance
Type
State
Battery Life
1 yr
Waterproof
IP50
Compatible With
HOBOware(R), HOBOware(R) Pro Software Packages
Relative Humidity Range
0 to 95%
Minimum Temperature Measured Degrees F
-4 Degrees F
Battery Voltage
3V
Parameters Measured
Temperature Degrees C, Temperature Degrees F
Alert Type
Digital Display, Sound
Digital Display Screen Type
LCD
Maximum Operating Temperature Degrees F
158 Degrees F
Compatible Operating Systems
HOBOware(R)
Battery Chemistry
Lithium
Resistance Properties
Water Resistant
Maximum Relative Humidity Measured
95 %
Minimum Sampling Rate
1 sec
Maximum Sampling Rate
18 hr
Calibration Certificate Type
Not Certified
Software Options
Software Available Separately
Maximum Temperature Measured Degrees C
70 Degrees C
Minimum Operating Temperature Degrees F
-4 Degrees F
Minimum Relative Humidity Measured
0 %
Minimum Temperature Measured Degrees C
-20 Degrees C
Number of Batteries Required
1
Maximum Temperature Measured Degrees F
158 Degrees F
Power Source
Battery
Battery Run Time
1 yr

Description

Data Logger, AC Voltage Accuracy Not Applicable, Alert Type Digital Display, Sound, Current Channels Not Applicable, Maximum Dew Point Measured Not Applicable, Minimum Dew Point Measured Not Applicable, For Phase Not Applicable, Calibration Certificate Type Not Certified, Minimum Sampling Rate 1 sec, Maximum AC Current Measurement Not Applicable, Maximum Relative Humidity Measured 95 Percent, Maximum AC Voltage Measured Not Applicable, Minimum Relative Humidity Measured 0 Percent
