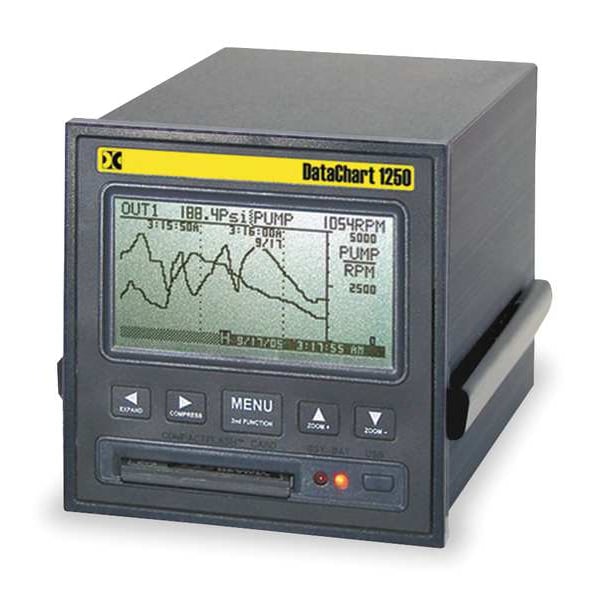

Paperless Recorder, Power 12 to 24 Vdc
- Mfr # DC1250-D01
- Zoro # G0430945
product price:Â
$
891.99
/ea
Free Shipping & Returns
Key Features
Temp. Range
-148 Degrees to 2,498 Degrees F (-100 Degrees to 1,370 Degrees C)
Display
Mono LCD
Current Range
4-20mADC, 0-20mADC, 10-50mADC, 0-50mADC
Characteristics
Two Universal Inputs including Frequency and Pulse. Variable Sample Times. High Storage Capacity, Internal Programming. Two Alarm Outputs included. Mini front accessible USB 2.0 port for data transfer and real time recording control. DC Input Power
Voltage Range
0-250mV DC, 0-1.25V DC, 0-2.5V DC, 0-5V DC, 0-12.5V DC, 0-25V DC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- DC1250-D01
- Zoro #
- G0430945
- UPC #
- -
- Country of Origin
- United States
- Temp. Range
- -148 Degrees to 2,498 Degrees F (-100 Degrees to 1,370 Degrees C)
- Display
- Mono LCD
- Item
- Paperless Recorder
- Current Range
- 4-20mADC, 0-20mADC, 10-50mADC, 0-50mADC
- Characteristics
- Two Universal Inputs including Frequency and Pulse. Variable Sample Times. High Storage Capacity, Internal Programming. Two Alarm Outputs included. Mini front accessible USB 2.0 port for data transfer and real time recording control. DC Input Power
- Voltage Range
- 0-250mV DC, 0-1.25V DC, 0-2.5V DC, 0-5V DC, 0-12.5V DC, 0-25V DC
- Thermocouple Type
- E, J, K, T
- Power Source
- 12 to 24 VDC
- Channels
- 2
- Includes
- Instructions
- RTD Type
- 100 Ohm Pt 385,100 Ohm Pt 392,2 or 3 wire
- Features
- Ethernet Communication, Front Access USB Communication, Navigator Software
- Display Type
- Graphics LCD
- Operating Temperature - Maximum
- 122 Degrees F
- Current - Minimum
- 0 mA DC
- Voltage - Maximum
- 24V DC
- Operating Temperature - Minimum
- 14 Degrees F
- Current - Maximum
- 50 mA DC
- Voltage - Minimum
- 12V DC
- Number of Channels
- 2
- Memory Storage
- 2GB Compact Flash
Description
Paperless Recorder, Thermocouple Type E, J, K, T, Voltage - Maximum 24V DC, Current - Maximum 50 mA DC, Current - Minimum 0 mA DC, Features Ethernet Communication, Front Access USB Communication, Navigator Software, Memory Storage 2GB Compact Flash, Number of Channels 2, Operating Temperature - Maximum 122 Degrees F, Operating Temperature - Minimum 14 Degrees F, Voltage - Minimum 12V DC, Display Type Graphics LCD, Overall Length 3 3/4 in, Overall Height 3 3/4 in, Overall Width 6 in
