This item is Discontinued.

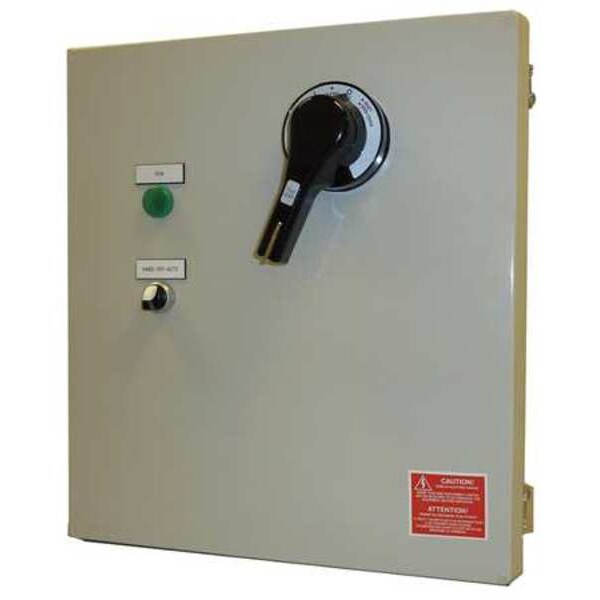

Hoffman Combo Soft Starter, 10/30HP, 40A, HOA DS6-C4040HPT

Combo Soft Starter, 10/30HP, 40A, HOA (Discontinued)

  • Mfr # DS6-C4040HPT
  • Zoro # G0697627
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DS6-C4040HPT
Zoro #
G0697627
UPC #
190735363645
Country of Origin
United States

Dimensions

Height
19.3 in
Width
17.3 in
Depth
11.08 in
Overall Height
19.3 in
Overall Depth
11.08 in
Overall Width
17.3 in

Details

Item
Combination Soft Start
Output Voltage
240V AC, 480V AC
Input Voltage
240 V AC, 480 V AC
HP @ 3 Phase - 230V
10 hp
HP @ 3 Phase - 460V
30 hp
Output Current
40 A
NEMA Rating
4x
Accepts Input Control Signal
Remote Contact
Start/Stop Control
Manual
Includes
Pilot Light
Control Method
Dial
Standards
CE, CSA, UL Listed
Starting Torque
0% to 400%
Control Type
2 Phase
For Use With
3 Phase Inverter Duty Motor
Acceleration Adjustment
0 to 30 sec
Key Pad Lockout
Enclosure Padlock
Short Circuit Protection
Motor Circuit Protector
Phase
Three
Dynamic Braking
No
Deceleration Adjustment
0 to 30 sec
Display
No
HP @ 3 Phase - 240V
10 hp
HP @ 3 Phase - 480V
30 hp
Enclosure Rating
IP66, NEMA 4X
Application
Conveyors, Fans, Pumps
Enclosure Type
Drip Proof
Features
25 yr Fiberglass Enclosures, Built-in Bypass to Reduce Heat and Prolong Starter Life, Electronic Voltage Control to Increase Motor Torque Options, Remote Input Control Signal
Line Contactor Included
No
Bypass Included
Yes
Output Power
10 hp @ 3 Phase, 240V AC, 30 hp @ 3 Phase, 480V AC

Description

Combination Soft Start, Input Voltage 240 V AC, 480 V AC, Output Current 40 A, Output Voltage 240V AC, 480V AC, Output Power 10 hp @ 3 Phase, 240V AC, 30 hp @ 3 Phase, 480V AC, Phase Three, Enclosure Rating IP66, NEMA 4X, Enclosure Type Drip Proof, Acceleration Adjustment 0 to 30 sec, Accepts Input Control Signal Remote Contact, Bypass Included Yes, Control Method Dial, Dynamic Braking No, Line Contactor Included No, Overall Depth 11.08 in, Overall Height 19.3 in, Overall Width 17.3 in
