Shop HOFFMAN

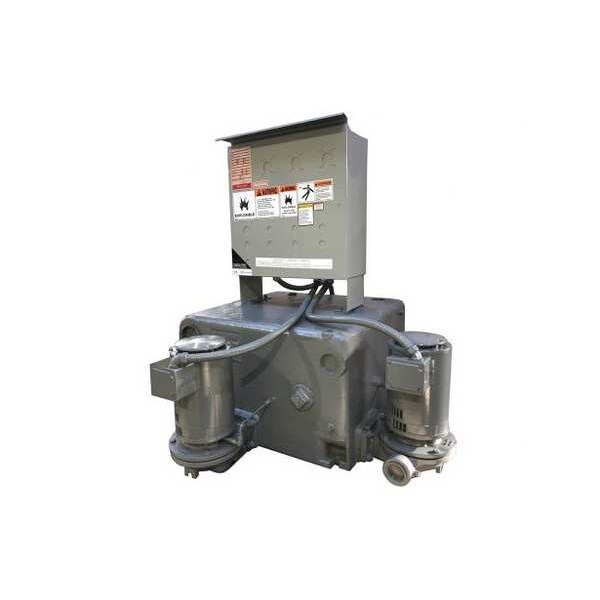

Condensate Return Unit, 23 Gal, 22 GPM

  • Mfr # 160034

  • Zoro # G3418992

product price:
$
17,865.99
/ea
Additional $140.00 delivery surcharge applies per item.
See details

Key Features

Voltage
230
Features
Mechanical Alternator, Contactors, Thermal Overload Relay, Transformer, Liquid Tight Conduit
Type
Duplex
Length (In.)
32 1/2 in
Application
Condensate Transfer for Residential, Commercial and Industrial Steam Heating and Industrial Recessing, Dry Cleaning Plants, Chemical Refineries, Wood Pulp Processing, Textile Mills and Manufacturing Facilities
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
160034
Zoro #
G3418992
UPC #
683328231617
Country of Origin
United States

Dimensions

Length (In.)
32 1/2 in
Receiver Size (Gal.)
23
Height (In.)
32 13/16 in
Width (In.)
30 3/4 in
Overflow Port Pipe Size
2 in
Overall Height
32.81 in
Compatible Discharge Pipe Size
1 1/2 in
Vent Line Port Pipe Size
2 in
Overall Width
30.75 in
Manufacturer Warranty Length
20 yr
Overall Length
32.5 in
Compatible Intake Pipe Size
2 in
Drain Port Size
1 in
Overflow Port Pipe Diameter
2 in
Inlet Diameter
2 in
Vent Line Port Pipe Diameter
2 in
Drain Port Diameter
1 in
Discharge Diameter
1 1/2 in
Wire Rope Length
32.5 in
Length
32.5 in

Details

Item
Condensate Return System
Voltage
230
Features
Mechanical Alternator, Contactors, Thermal Overload Relay, Transformer, Liquid Tight Conduit
Type
Duplex
Application
Condensate Transfer for Residential, Commercial and Industrial Steam Heating and Industrial Recessing, Dry Cleaning Plants, Chemical Refineries, Wood Pulp Processing, Textile Mills and Manufacturing Facilities
NPT Low Return Inlet (In.)
2 in
Bearings
Permanently Lubricated Ball
EDR Rating
22,000
Impeller Material
Bronze
Pump Flow (GPM)
22
HP
3/4 hp
Discharge Pressure (PSI)
30
Seal Type
John Crane
Number of Pumps
2
Switch Type
Normally Open
Volute Material
Cast Iron
Max. Head (Ft.)
72
Full Load Amps @ 115/230V
3.2/2.8/1.4
NPT Pump Discharge (In.)
1 1/2 in
Motor Type
Open Drip Proof
NPT Overflow Port (In.)
2 in
NPT Vent Line Port (In.)
2 in
RPM
3,500 RPM
Tank Material
Cast Iron
Shaft Material
Stainless Steel
NPT Drain Port (In.)
1 in
Pump Material
Cast Iron
Hz
60
Mounting
4-Bolt Flange
For Use With Potable Systems
No
Phase
Three
Pump Type
Condensate Return
Maximum Media Temperature
200 Degrees F
Pump Housing Material
Cast Iron
Pump Mounting Position
Vertical
Amps
1.4/2.8/3.2 A
Horsepower
3/4 hp
Equivalence of Direct Radiation Rating
22,000
Number of Intakes
1
Maximum Feet of Head
75 ft
Intake Connection Style
NPT
Series
SCC3B
Discharge Connection Style
NPT
Tank Capacity
23 gal
Motor Enclosure Design
Open Drip Proof
Frequency
60 Hz
Series Family
SCC
Maximum RPM
3,500 RPM
Compatible Media Type
Water
Nameplate Voltage
230/460V AC
Discharge Standard
NPT
Maximum Flow Rate @ 30 Feet of Head
60 gpm
Revolutions Per Minute - Maximum
3,500 RPM
Pump System Design
Duplex
Maximum Flow Rate @ 50 Feet of Head
60 gpm
Mounting Orientation
Vertical
Flow Rate - Maximum
60 gpm
Feet of Head - Maximum
75 ft
Full Load Current
1.4/2.8/3.2 A
Inlet Gender
Female
Discharge Gender
Female
Maximum Flow Rate @ 40 Feet of Head
60 gpm
Media Temperature - Maximum
200 Degrees F
Pump Casing Material
Cast Iron
Discharge Pressure
30 psi
Tank Orientation
Horizontal
Inlet Standard
NPT

Description

Condensate Return System, Discharge Connection Style NPT, Equivalence of Direct Radiation Rating 22,000, Horsepower 3/4 hp, Intake Connection Style NPT, Maximum Feet of Head 75 ft, Maximum Flow Rate @ 30 Feet of Head 60 gpm, Maximum Flow Rate @ 40 Feet of Head 60 gpm, Maximum Flow Rate @ 50 Feet of Head 60 gpm, Maximum Media Temperature 200 Degrees F, Pump Mounting Position Vertical, Nameplate Voltage 230/460V AC, Pump Type Condensate Return, Tank Capacity 23 gal, Number of Pumps 2, Phase Three
