This item is Discontinued.

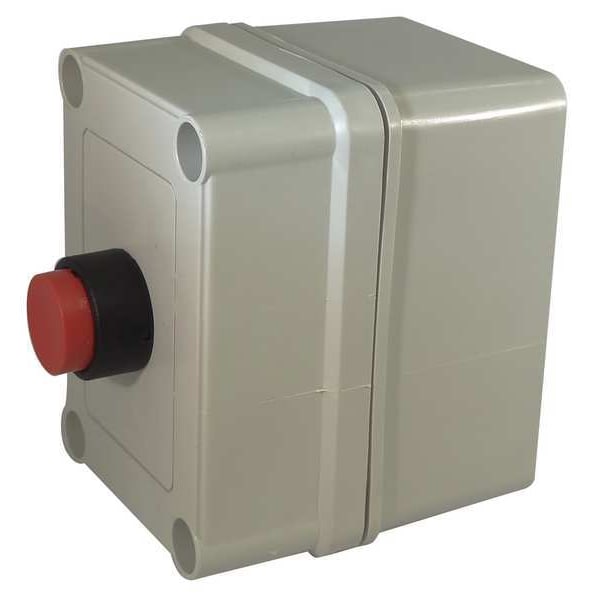

Hoffman Push Button Cntrol Station, 1NC, No Legend VS-PBS02

Push Button Cntrol Station, 1NC, No Legend (Discontinued)

  • Mfr # VS-PBS02
  • Zoro # G7029136
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
VS-PBS02
Zoro #
G7029136
UPC #
-
Country of Origin
United States

Dimensions

Size
22 mm
Overall Width
3.18 in
Overall Depth
3.61 in
Panel Cutout Diameter
22 mm
Overall Height
4.36 in

Details

Item
Control Station
Legend
No Legend
Number of Pilot Lights
0
Type of Operator
Extended Button
Contact Form
1NC
Number of Operators
1
NEMA Rating
4X
Contact Rating
10A @ 600V AC, 5A @ 24V DC
Standards
CSA, UL Listed
Action
Momentary
Mechanical Interlock
No
Enclosure Material
Thermoplastic
IP Rating
IP66
Operator Color
Red
Enclosure Color
Cream
AC Contact Rating
10 A @ 600 V
DC Contact Rating
5 A @ 24 V
Includes Mechanical Interlock
No Mechanical Interlock Included.
Hazardous Location Specification
Not Rated
NEMA Enclosure Rating
4X
Operator Configuration
Extended Push Button
Product Type
Control Station
Mounting Orientation
Horizontal, Vertical

Description

Control Station, Number of Operators 1, Number of Pilot Lights 0, Size 22 mm, Legend No Legend, Type of Operator Extended Button, Action Momentary, Operator Color Red, Contact Form 1NC, Mechanical Interlock No, NEMA Rating 4X, Contact Rating 10A @ 600V AC, 5A @ 24V DC, IP Rating IP66, Enclosure Material Thermoplastic, Enclosure Color Cream, Standards CSA, UL Listed
