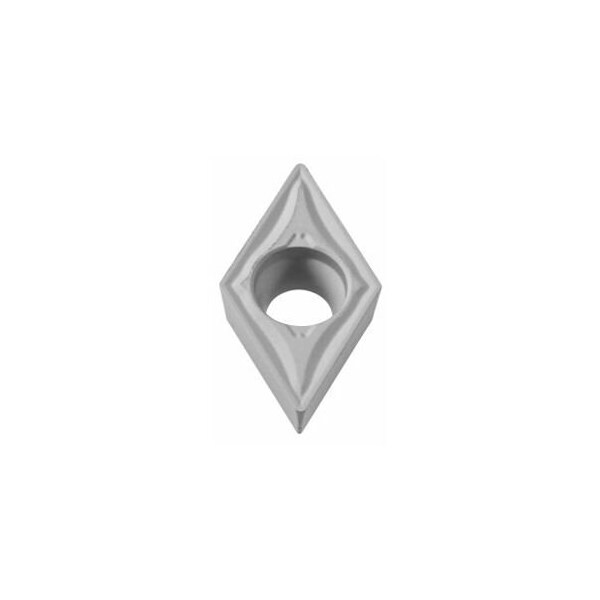

Carbide Turning Insert, Diamond, DCMT11T302, for Steel
Mfr # 260503 HBT020
Zoro # G214821818
product price: $12.19
/eaSold in multiples of 10 for $121.90
Key Features
Insert Size
11T302
Insert Style
DCMT
Insert Shape
55 Degrees Diamond
Inscribed Circle
3
Cutting Conditions
Slightly Interrupted
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
260503 HBT020
Zoro #
G214821818
UPC #
-
Country of Origin
Japan
Dimensions
Insert Size
11T302
Corner Radius
0.2 mm
Cutting Depth
0.5 mm
Insert Thickness
2.5 mm
Min. Cutting Depth (ap min)
0.15 mm
Max. Cutting Depth (ap max)
2.75 mm
Details
Insert Style
DCMT
Insert Shape
55 Degrees Diamond
Inscribed Circle
3
Item
Indexable Insert for Turning
Cutting Conditions
Slightly Interrupted
Insert Material
Carbide
No. of Edges
2
Coating
TiCN
Insert Application
Roughing-Finishing
Grade
HBT020
Chip-Breaker
PM
ISO Number
DCMT 11T302
Workpiece Material
Steel
Description
DCMT 11T302 HBT020 Grade: HBT020 Chip breaker: PM Cutting depth ap: 0.5 2.5 mm Feed f: 0.12 0.3 mm/rev. Cutting speed vc main application: 100 280 m/min
