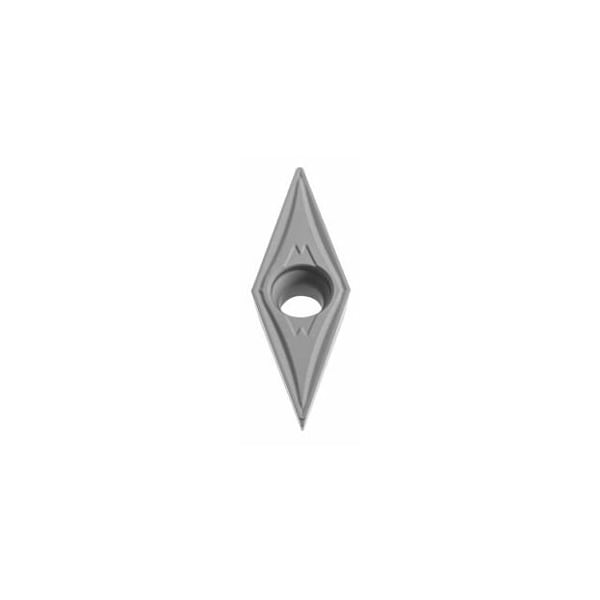

Carbide Turning Insert, Diamond, VCMT331 / VCMT160404, for Steel
Mfr # 261474 HBT020
Zoro # G714821943
product price: $15.39
/ea
Sold in multiples of 10 for $153.90
Key Features
No. of Edges
2
Inscribed Circle
3
Insert Thickness
3 mm
Max. Cutting Depth (ap max)
2.5 mm
Insert Shape
35 Degrees Diamond
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
261474 HBT020
Zoro #
G714821943
UPC #
-
Country of Origin
Japan
Dimensions
Insert Thickness
3 mm
Max. Cutting Depth (ap max)
2.5 mm
Cutting Depth
0.5 mm
Corner Radius
0.4 mm
Min. Cutting Depth (ap min)
0.25 mm
Insert Size
331
Details
No. of Edges
2
Inscribed Circle
3
Insert Shape
35 Degrees Diamond
Insert Style
VCMT
Grade
HBT020
Insert Application
Roughing-Finishing
Coating
TiCN
Insert Material
Carbide
Item
Indexable Insert for Turning
Cutting Conditions
Slightly Interrupted
Chip-Breaker
PM
Workpiece Material
Steel
ISO Number
VCMT 160404
Description
VCMT 160404 HBT020 Grade: HBT020 Chip breaker: PM Cutting depth ap: 0.5 2.5 mm Feed f: 0.12 0.3 mm/rev. Cutting speed vc main application: 100 280 m/min
