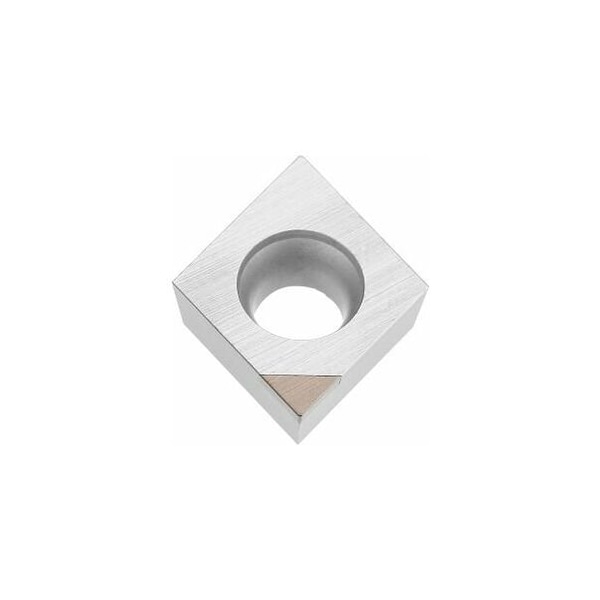

CBN Turning Insert, Diamond, CCMW060202, for Cast Iron
Mfr # 265750 M
Zoro # G314821619
product price: $33.65
/eaKey Features
Insert Size
60202
Insert Style
CCMW
Inscribed Circle
2
ISO Number
CCMW 060202
Max. Cutting Depth (ap max)
0.5 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
265750 M
Zoro #
G314821619
UPC #
-
Country of Origin
Germany
Dimensions
Insert Size
60202
Max. Cutting Depth (ap max)
0.5 mm
Corner Radius
0.2 mm
Insert Thickness
1.5 mm
Min. Cutting Depth (ap min)
0.1 mm
Cutting Depth
0.1 mm
Details
Item
Indexable Insert for Turning
Insert Style
CCMW
Inscribed Circle
2
ISO Number
CCMW 060202
Insert Shape
80 Degrees Diamond
No. of Edges
1
Insert Application
Finishing
Insert Material
CBN
Cutting Conditions
Continuous
Grade
BUX220
Cutting Edge Version
Stainless Steel
Description
Disposable insert. Single cutting edge. Note: Further indexable insert shapes, sizes and corner radii available on request. Grade: BUX220 Cutting edge M Cutting depth ap: 0.1 0.5 mm Feed f: 0.1 0.2 mm/rev. Cutting speed vc main application: 80 200 m/min
