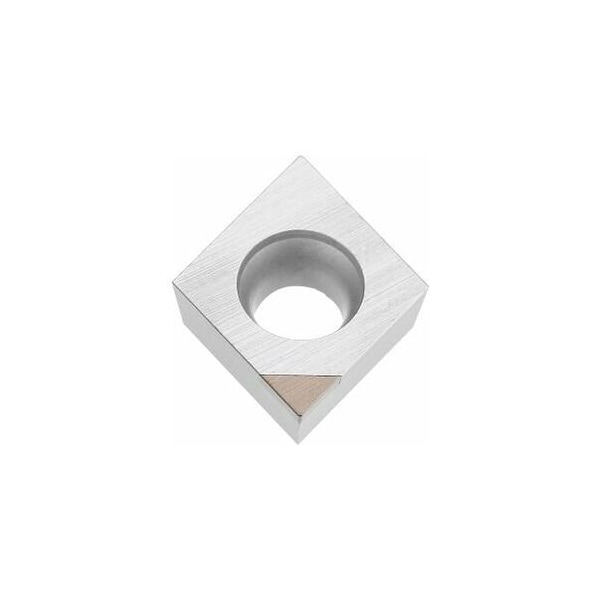

CBN Turning Insert, Diamond, CCMW09T302, for Cast Iron
Mfr # 265754 M
Zoro # G914821545
product price:Â
$
33.65
/ea
Key Features
Insert Shape
80 Degrees Diamond
Insert Style
CCMW
Inscribed Circle
3
Insert Size
09T302
Grade
BUX220
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 265754 M
- Zoro #
- G914821545
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Insert Size
- 09T302
- Corner Radius
- 0.2 mm
- Min. Cutting Depth (ap min)
- 0.1 mm
- Max. Cutting Depth (ap max)
- 0.5 mm
- Cutting Depth
- 0.1 mm
- Insert Thickness
- 2.5 mm
Details
- Item
- Indexable Insert for Turning
- Insert Shape
- 80 Degrees Diamond
- Insert Style
- CCMW
- Inscribed Circle
- 3
- Grade
- BUX220
- Insert Material
- CBN
- Insert Application
- Finishing
- ISO Number
- CCMW 09T302
- No. of Edges
- 1
- Cutting Edge Version
- Stainless Steel
- Cutting Conditions
- Continuous
Description
Disposable insert. Single cutting edge. Note: Further indexable insert shapes, sizes and corner radii available on request. Grade: BUX220 Cutting edge M Cutting depth ap: 0.1 0.5 mm Feed f: 0.1 0.2 mm/rev. Cutting speed vc main application: 80 200 m/min
