Shop HOLEX

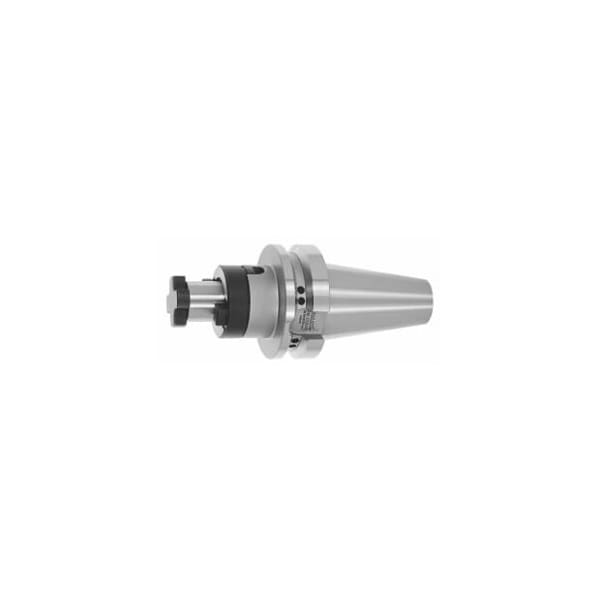

Combination Face Mill Adapter, Form A, BT 40 Short, Clamping Diameter: 16mm

  • Mfr # 302897 16

  • Zoro # G814776419

product price:
$
86.75
/ea

Key Features

Spare Milling Cutter Lock Screw No. 309860 / 309861
16
Outside Dia.
32 mm
Machining Strategy
HPC
Balance Quality
G 6.3 at 18,000 rpm
Taper Size
BT40
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
302897 16
Zoro #
G814776419
UPC #
-
Country of Origin
India
Spare Milling Cutter Lock Screw No. 309860 / 309861
16
Machining Strategy
HPC
Balance Quality
G 6.3 at 18,000 rpm
Suitable Toggle Spanner No. 309840
16
Standards
DIN 6358
Shape
A
Item
Milling cutter spigot
Concentricity
≤ 5 µm
Projection
55 mm
Spare Drive Ring No. 309870
16

Description

Taper shank, spigots, and contact surfaces ground on collar. All shanks fine bead blasted. Balancing quality G6.3 / 18-000 rpm. Form A. Application: With drive key for face mills with longitudinal slot, e.g. DIN 841. With drive ring for face mills with crosswise slot DIN 1880 and cutter heads DIN 1830. Supplied with: Drive key, face mill drive ring, and lock screw. Optional extras: Pull studs PS No. 308760 308802. Special toggle wrench No. 309840. Note: Internal cooling available only with suitable tightening screw No. 309861. Overhang dimension A: 55 mm External Dia D: 32 mm Spare milling cutter lock screw No. 309860 / 309861: 16 Spare drive ring No. 309870: 16 Suitable toggle wrench No. 309840: 16
