Shop HOLEX

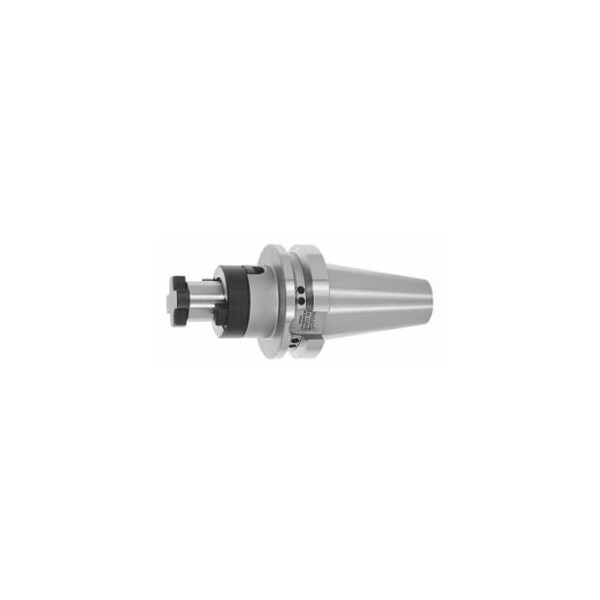

Combination Face Mill Adapter, Form A, BT 40 Short, Clamping Diameter: 27mm

  • Mfr # 302897 27

  • Zoro # G414776444

product price:  $88.19
/ea

Key Features

Shape
A
Projection
55 mm
Balance Quality
G 6.3 at 18,000 rpm
Outside Dia.
48 mm
Spare Drive Ring No. 309870
27
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
302897 27
Zoro #
G414776444
UPC #
-
Country of Origin
India

Dimensions

Outside Dia.
48 mm
Clamping Dia.
27 mm
Spigot Dia.
27 mm
Taper Size
BT40

Details

Shape
A
Projection
55 mm
Balance Quality
G 6.3 at 18,000 rpm
Spare Drive Ring No. 309870
27
Concentricity
≤ 5 µm
Spare Milling Cutter Lock Screw No. 309860 / 309861
27
Item
Milling cutter spigot
Standards
DIN 6358
Suitable Toggle Spanner No. 309840
27
Machining Strategy
HPC

Description

Taper shank, spigots, and contact surfaces ground on collar. All shanks fine bead blasted. Balancing quality G6.3 / 18-000 rpm. Form A. Application: With drive key for face mills with longitudinal slot, e.g. DIN 841. With drive ring for face mills with crosswise slot DIN 1880 and cutter heads DIN 1830. Supplied with: Drive key, face mill drive ring, and lock screw. Optional extras: Pull studs PS No. 308760 308802. Special toggle wrench No. 309840. Note: Internal cooling available only with suitable tightening screw No. 309861. Overhang dimension A: 55 mm External Dia D: 48 mm Spare milling cutter lock screw No. 309860 / 309861: 27 Spare drive ring No. 309870: 27 Suitable toggle wrench No. 309840: 27
