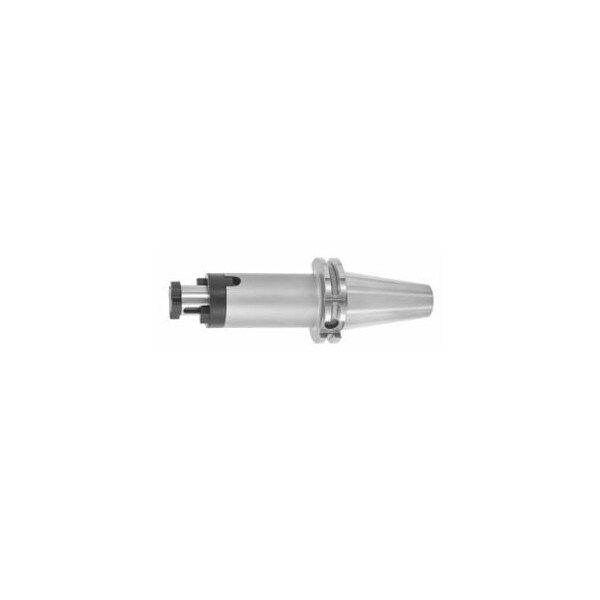

Combination Face Mill Adapter, Form A, SK 40, Projection: 100, Clamping Diameter: 32mm
Mfr # 300875 32
Zoro # G714776427
product price: $136.99
/ea
Free Shipping & Returns
Key Features
Milling Mandrel Length
38 mm
Standards
ISO 7388-1; DIN 6358
Balance Quality
G 6.3 at 15,000 rpm
Shape
ADB
Spigot Dia.
32 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
300875 32
Zoro #
G714776427
UPC #
-
Country of Origin
China
Dimensions
Milling Mandrel Length
38 mm
Spigot Dia.
32 mm
Clamping Dia.
32 mm
Outside Dia.
58 mm
Details
Standards
ISO 7388-1; DIN 6358
Balance Quality
G 6.3 at 15,000 rpm
Shape
ADB
Spare Drive Ring No. 309870
32
Machining Strategy
HPC
Projection
100 mm
Adapter
SK40A = 100
Spare Milling Cutter Lock Screw No. 309860 / 309861
32
Item
Milling cutter spigot
Suitable Toggle Spanner No. 309840
32
Concentricity
≤ 5 µm
Description
Taper shank, spigot, and all contact surfaces are ground at the collar. With Balluff/RFID chip bore. All shanks fine bead blasted. Application: With drive key for mills with longitudinal keyway, e. g. DIN 841. With face mill drive ring for face mills with cross keyway, DIN 1880 and cutter heads to DIN 1830. Supplied with: Drive key, face mill drive ring, and lock screw. Optional extras: Pull studs PS No. 308600 308806, PS wrenches No. 308820 - 308835, Special toggle wrench No. 309840. Note: Internal cooling available only with suitable tightening screw No. 309861. Machining strategy: HPC Overhang dimension A: 100 mm External Dia D: 58 mm Milling mandrel length L3 with drive ring: 24 mm Milling mandrel length L4: 38 mm Spare milling cutter lock screw No. 309860 / 309861: 32 Spare drive ring No. 309870: 32
