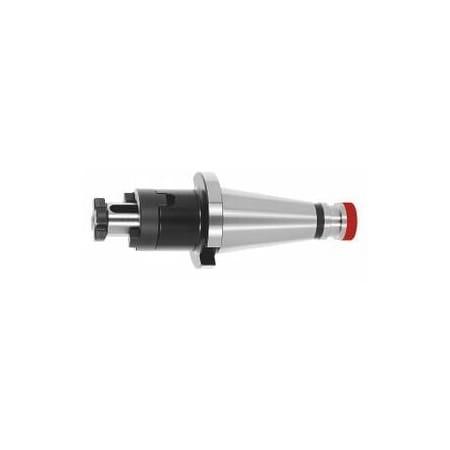

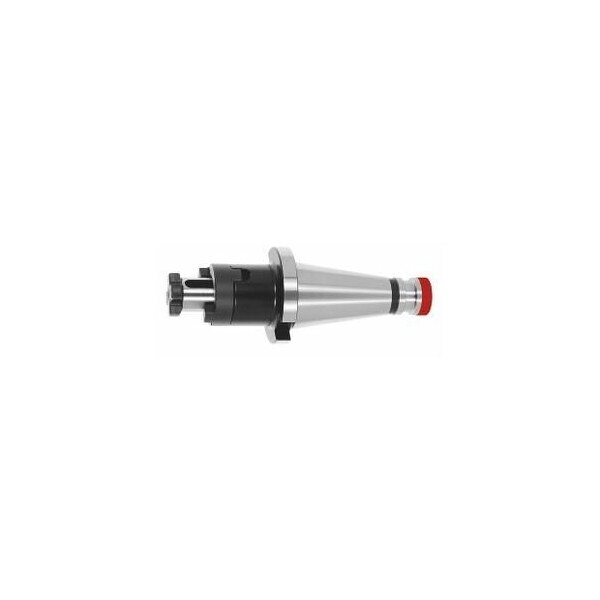

Combination Face Mill Adapter, SK 50, Projection: 55, Clamping Diameter: 22mm (Discontinued)
- Mfr # 302515 22
- Zoro # G714776441
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
302515 22
Zoro #
G714776441
UPC #
-
Country of Origin
China
Description
Internal thread for manual clamping. Application: With drive key for milling cutters with longitudinal groove, e.g. DIN 841. With face mill drive ring for milling cutters with transverse slots-DIN 1880. Supplied with: Drive key, face mill drive ring, and lock screw. Optional extras: Special toggle wrench No. 309840. Concentricity: 6 um Overhang dimension A: 55 mm Overall length L: 201 mm Milling mandrel length L3 with drive ring: 19 mm Milling mandrel length L4: 31 mm Thread M: M24 Spare milling cutter lock screw No. 309860 / 309861: 22
