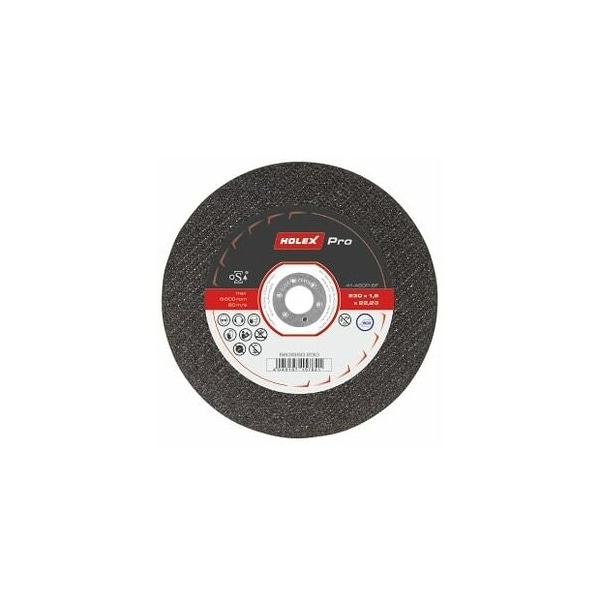

Cutting disc, 230 mm Dia, 1.9 mm Thick, 22.23 mm Arbor Hole Size, Aluminum Oxide, Pro Series
Mfr # 563550 230
Zoro # G814555502
product price:Â $2.95
/ea
Sold in multiples of 25 for $73.75
Key Features
Overall Diameter
230 mm
Overall Thickness
1.9 mm
Connector Size
22.23 mm
Primary Material Application
Stainless Steel
Abrasive Material
Aluminum Oxide
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 563550 230
- Zoro #
- G814555502
- UPC #
- -
- Country of Origin
- Czechia
Dimensions
- Overall Diameter
- 230 mm
- Overall Thickness
- 1.9 mm
- Connector Size
- 22.23 mm
- For Material Thicknesses
- 5.7 mm
- Bore Diameter
- 22.23 mm
Details
- Item
- Cutting disc
- Primary Material Application
- Stainless Steel
- Abrasive Material
- Aluminum Oxide
- Series
- Pro
- Maximum Operating Speed
- 6600 RPM
- Specification
- A60P-BF
- Iron, Sulphur and Chlorine Constituents
- < 0.1 %
- Recommended Approach Angle
- 90 °
- Shape description
- Flat
- Grinding media
- Standard Aluminium Oxide
- Optimised For Material
- Steel
Description
Grit, bonding, abrasive additives as well as reinforcement of the cut-off discs are optimized for maximum cutting performance and working life in their respective applications. Thin cutting discs 0.8 mm / 1.0 mm / 1.6 mm specially suited for quick burr-free cutting with low thermal stress. On older angle grinders please ensure discs are precisely Centered! Cutting discs from 2.0 mm disc thickness exhibit increased lateral stability, stiffness and service life. Shapes: Cutting discs flat shape 41 or with depressed Center shape 42. The thin cutting disc for quick cuts without heavy force. Application: For freehand cutting using electric and pneumatic angle grinders with maximum 80 m/s peripheral cutting speed vc. Specification: A60P-BF. Note: The disc thickness should be at least 20% of the material thickness to be cut. For stainless steel, use cutting discs at reduced speed. maximum circumferential speed: 80 m/s Shape description: flat Bore : 22.23 mm Shape description: flat Disc thickness: 1.9 mm Bore : 22.23 mm
