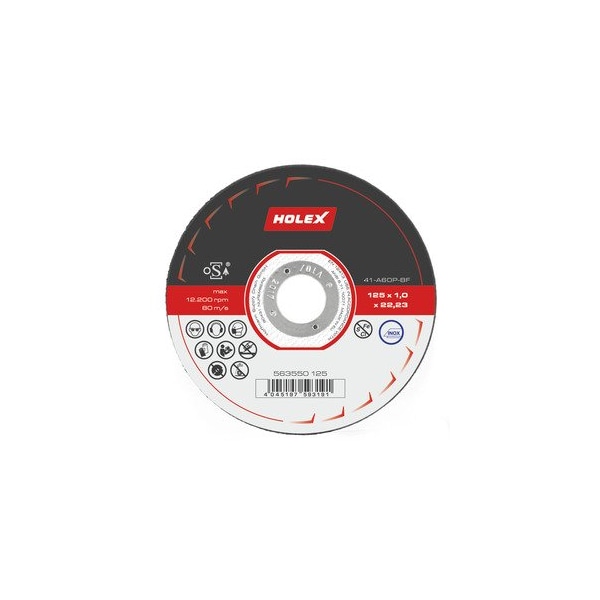

Cutting disc, 125 mm Dia, 1 mm Thick, 22.23 mm Arbor Hole Size, Aluminum Oxide, Pro Series
Mfr # 563550 125
Zoro # G809617185
product price:Â
$
1.59
/ea
Sold in multiples of 25 for $39.75
Key Features
Overall Thickness
1 mm
Connector Size
22.23 mm
Primary Material Application
Stainless Steel
Abrasive Material
Aluminum Oxide
Series
Pro
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 563550 125
- Zoro #
- G809617185
- UPC #
- 4045197593191
- Country of Origin
- Czechia
Dimensions
- Overall Diameter
- 125 mm
- Overall Thickness
- 1 mm
- Connector Size
- 22.23 mm
- For Material Thickness
- 3 mm
Details
- Item
- Cutting disc
- Primary Material Application
- Stainless Steel
- Abrasive Material
- Aluminum Oxide
- Series
- Pro
- Maximum Operating Speed
- 13,300 RPM
- Specification
- A60P-BF
- Application
- Steel
- Grade
- A
- Iron, Sulphur and Chlorine Constituents
- Less Than 0.1%
- Recommended Approach Angle
- 90 Degrees
- Shape
- Flat
Description
Optimised for maximum cutting performance and working life in their respective applications. - Thin cutting discs 0.8 mm / 1.0 mm / 1.6 mm specially suited for quick burr-free cutting with low thermal stress. On older angle grinders please ensure discs are precisely centered! Cutting discs from 2.0 mm disc thickness exhibit increased lateral stability- stiffness and service life. - Shapes: Cutting discs flat shape 41 or with depressed center shape 42. The thin cutting disc for quick cuts without heavy force. Application: For freehand cutting using electric and pneumatic angle grinders with maximum 80 m/s peripheral cutting speedvc. Specification: A60P-BF. Note: The disc thickness should be at least 20% of the material thickness to be cut. For stainless steel- use cutting discs at reduced speed. maximum circumferential speed: 80 m/s Shape description: flat Disc thickness: 1 mm Bore Diameter: 22.23 mm
