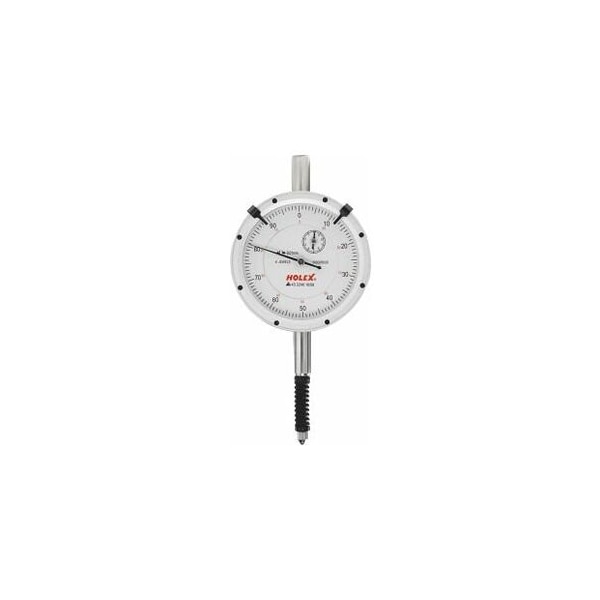

Dial Indicator, IP54, Shock-Resistant, Measuring Range / Body Diameter: 10/58 mm
Mfr # 432240 10/58
Zoro # G514556779
product price:Â
$
129.99
/ea
Free Shipping & Returns
Key Features
Graduations
0.01 mm
Standards
DIN 878
Body Dia.
58 mm
Max. Permissible Error
15 µm
Measuring Range
10 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 432240 10/58
- Zoro #
- G514556779
- UPC #
- -
- Country of Origin
- China
Dimensions
- Body Dia.
- 58 mm
- Clamping Shank Dia. (h6)
- 8 mm
Details
- Graduations
- 0.01 mm
- Standards
- DIN 878
- Item
- dial gauge
- Max. Permissible Error
- 15 µm
- Measuring Range
- 10 mm
- Reading per Pointer Revolution
- 1 mm
- IP Rating
- IP 54
- Gauging Force
- 0.7 N
- Measurement Technology
- Analogue
- Packaging
- sturdy box
Description
Dial indicators with protection against splashed water, oil and dirt. Contact point on plunger spindle sealed by rubber bellows, sealed by protective sleeve at the top. Back wall sealed, glass and outer ring tightly screwed. Clamping shank Diameter 8 mm h6. Function: IP54: Protected against splashed water from all directions and protected against penetration of dust into the inside protected against dust also completely protected against touching. Optional extras: Special contact points No. 434900, 434910, 434915.
