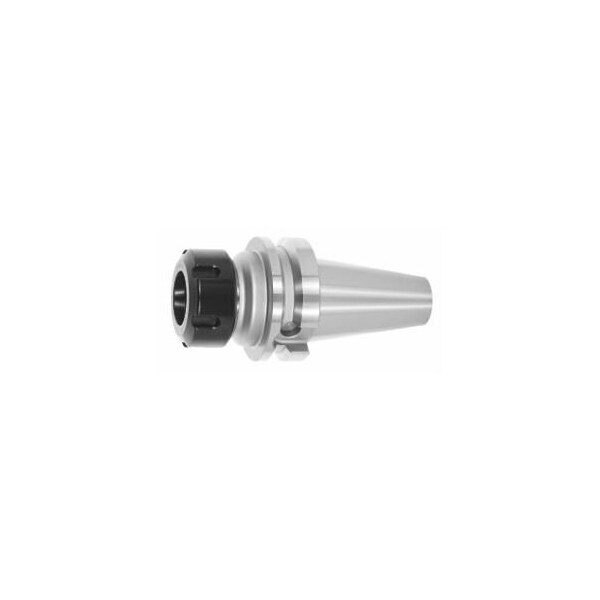

ER Collet Chuck, Form AD, BT 40 Short, for ER Collet: 40
- Mfr # 302757 40
- Zoro # G514773404
product price:Â
$
121.99
/ea
Free Shipping & Returns
Key Features
Shank Shape
AD
Taper Size
BT40
Projection
80 mm
Outside Dia.
63 mm
Balance Quality
G 6.3 at 18,000 rpm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 302757 40
- Zoro #
- G514773404
- UPC #
- -
- Country of Origin
- India
Dimensions
- Taper Size
- BT40
- Outside Dia.
- 63 mm
- Clamping Dia.
- 3-26 mm
Details
- Item
- Collet Chuck
- Shank Shape
- AD
- Projection
- 80 mm
- Balance Quality
- G 6.3 at 18,000 rpm
- Clamping Range
- 3 mm
- ER Chuck Key
- 40
- Machining Strategy
- HSC
- Concentricity
- ≤ 3 µm
- Spare ER Clamping Nut
- 40
Description
External and internal taper ground. All shanks fine bead blasted. Balancing quality G6.3 / 18-000 rpm. High-quality precision clamping nut. Application: For clamping tools with parallel shank in collets to DIN 6499 Form A and B. Supplied with: ER clamping nut. Optional extras: ER collets No. 308881 309434, ER chuck keys No. 309680 - 309745 or No. 613300. Pull studs PS No. 308760 308802. Pull stud wrenches No. 308820, 308835. Note: Matching clamping nut No. 309580 or 309610. Machining strategy: HSC Clamping range: 3 26 mm Overhang dimension A: 80 mm External Dia D: 63 mm Spare ER clamping nut: 40 ER chuck key: 40
