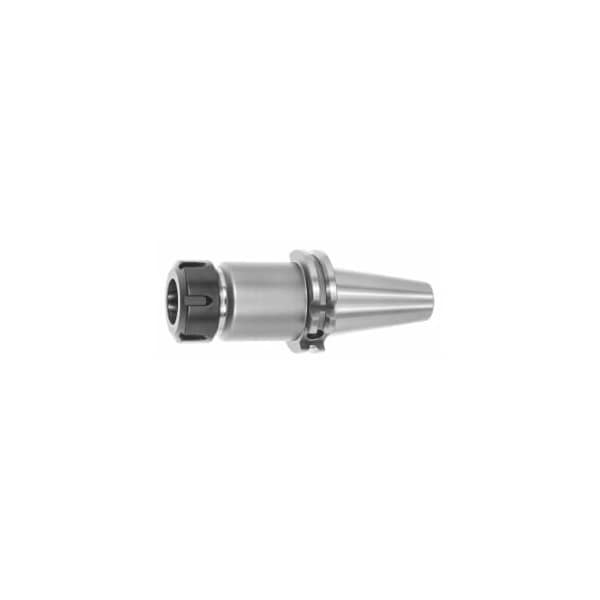

ER Collet Chuck, Form AD, SK 40, Projection: 100, for ER Collet: 32
Mfr # 300505 32
Zoro # G714773372
product price:Â $123.99
/ea
Free Shipping & Returns
Key Features
Shank Shape
AD
Taper Size
SK40
Projection
100 mm
Balluffchip Bore
Yes
Spare Garant High-Speed Clamping Nut No. 309610
32
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 300505 32
- Zoro #
- G714773372
- UPC #
- -
- Country of Origin
- China
Dimensions
- Taper Size
- SK40
- Clamping Dia.
- 2-20 mm
- Outside Dia.
- 50 mm
Details
- Item
- Collet chuck
- Shank Shape
- AD
- Projection
- 100 mm
- Balluffchip Bore
- Yes
- Spare Garant High-Speed Clamping Nut No. 309610
- 32
- Standards
- ISO 7388-1
- Clamping Range
- 2 mm
- Balance Quality
- G 6.3 at 18,000 rpm
- Spare Holex Nut No. 309580
- 32
- Concentricity
- ≤ 3 µm
- Machining Strategy
- HSC
Description
Taper ground internally and externally. With Balluff/RFID chip bore. HOLEX HOLEX precision clamping nut, balanced G6.3 / 18-000 rpm, all shanks fine bead blasted. Balancing quality G6.3 / 18-000 rpm. Application: For clamping tools with plain shank in collets to DIN 6499 Form A and B. Supplied with: Clamping nut. Optional extras: Pull studs PS No. 308600 308806, PS pull stud wrenches No.308820 308835, ER chuck key No. 309680 613300, ER collets No. 308901 309449, ER clamping nuts No. 309615 for sealing rings, sealing rings No. 309625 309645 for No. 309615. Machining strategy: HSC Clamping range: 2 20 mm Overhang dimension A: 100 mm External Dia D: 50 mm Spare GARANT high-speed clamping nut No. 309610: 32 Spare HOLEX nut No. 309580: 32
