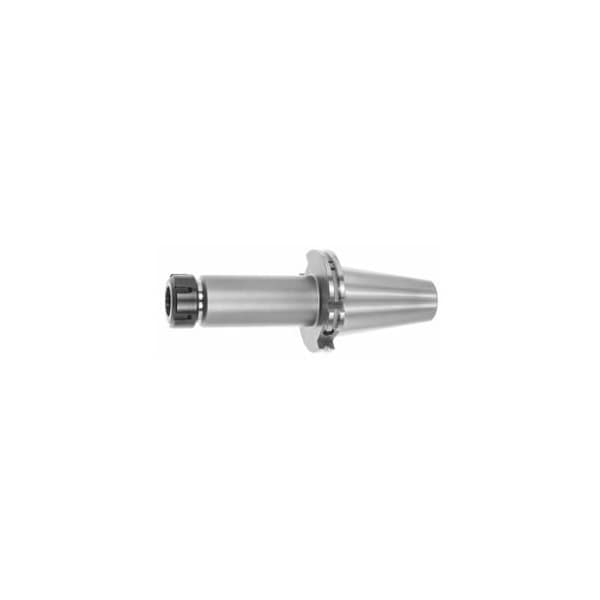

ER Collet Chuck, Form AD, SK 50, Projection: 160, for ER Collet: 32
Mfr # 300615 32
Zoro # G514773497
product price: $255.99
/ea
Free Shipping & Returns
Key Features
Shank Shape
AD
Concentricity
≤ 3 µm
Spare Garant High-Speed Clamping Nut No. 309610
32
Spare Holex Nut No. 309580
32
Outside Dia.
50 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
300615 32
Zoro #
G514773497
UPC #
-
Country of Origin
China
Dimensions
Outside Dia.
50 mm
Taper Size
SK50
Clamping Dia.
2-20 mm
Details
Shank Shape
AD
Concentricity
≤ 3 µm
Spare Garant High-Speed Clamping Nut No. 309610
32
Spare Holex Nut No. 309580
32
Item
Collet chuck
Clamping Range
2 mm
Balance Quality
G 6.3 at 18,000 rpm
Standards
ISO 7388-1
Machining Strategy
HSC
Balluffchip Bore
Yes
Projection
160 mm
Description
Taper ground internally and externally. With Balluff/RFID chip bore. HOLEX HOLEX precision clamping nut, balanced G6.3 / 18-000 rpm, all shanks fine bead blasted. Balancing quality G6.3 / 18-000 rpm. Application: For clamping tools with plain shank in collets to DIN 6499 Form A and B. Supplied with: Clamping nut. Optional extras: Pull studs PS No. 308600 308806, PS pull stud wrenches No.308820 308835, ER chuck key No. 309680 613300, ER collets No. 308901 309449, ER clamping nuts No. 309615 for sealing rings, sealing rings No. 309625 309645 for No. 309615. Machining strategy: HSC Clamping range: 2 20 mm Overhang dimension A: 160 mm External Dia D: 50 mm Spare GARANT high-speed clamping nut No. 309610: 32 Spare HOLEX nut No. 309580: 32
