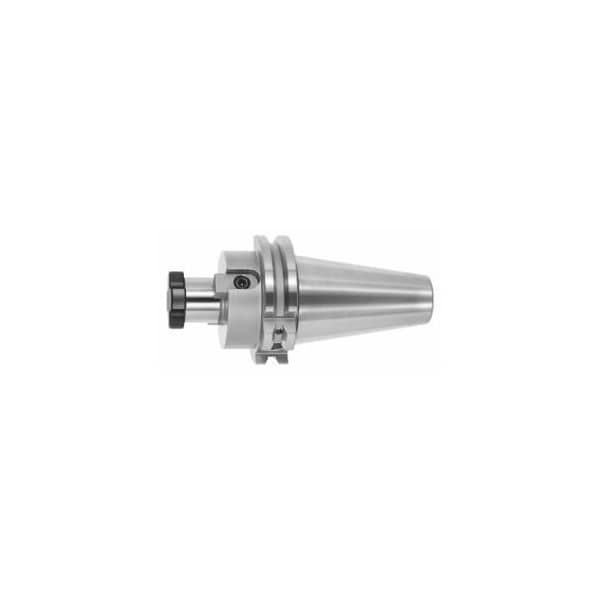

Face Mill Arbor, Form A, SK40 Short, Clamping Diameter: 32mm
Mfr # 301017 32
Zoro # G914774377
product price: $110.99
/ea
Free Shipping & Returns
Key Features
Machining Strategy
HPC
Spare Milling Cutter Lock Screw No. 309860 / 309861
32
Outside Dia.
78 mm
Concentricity
≤ 5 µm
Taper Size
SK40
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
301017 32
Zoro #
G914774377
UPC #
-
Country of Origin
China
Dimensions
Outside Dia.
78 mm
Taper Size
SK40
Clamping Dia.
32 mm
Milling Mandrel Length
24 mm
Spigot Dia.
32 mm
Details
Machining Strategy
HPC
Spare Milling Cutter Lock Screw No. 309860 / 309861
32
Concentricity
≤ 5 µm
Item
Milling head arbor
Balance Quality
G 6.3 at 15,000 rpm
Shank Shape
ADB
Projection
50 mm
Standards
ISO 7388-1; DIN 6357
Suitable Toggle Spanner No. 309840
32
Description
Taper shank, spigot, and all contact surfaces are ground at the collar. Short series. Increased collar contact surface. With RFID/Balluffchip bore. All shanks fine bead blasted. Supplied with: Lock screw. Machining strategy: HPC Overhang dimension A: 50 mm External Dia D: 78 mm Milling mandrel length L4: 24 mm Spare Milling cutter lock screw No. 309860 / 309861: 32 Suitable toggle wrench No. 309840: 32
