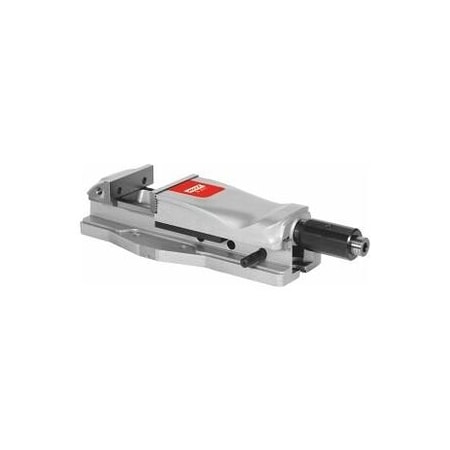

High-Pressure Vise without Swivel Base, Jaw Width: 135mm (Discontinued)

Base body and movable upper sliding blocks made of spheroidal graphite iron GGG 60, slides hardened and ground. Hydro-mechanical power intensifier with precise clamping force pre-selection. Maintenance-free and fully enclosed high-pressure spindle. As standard with hardened and ground smooth clamping jaws. Base plate with longitudinal and cross slots provides for quick and precise alignment of the vice in longitudinal and transverse directions. Callout: Exchangeable jaws. Quick adjustment of the clamping range. Pre-setting of the clamping pressure. Application: For vibration-free, reliable clamping under high cutting and feed rate forces. Quick clamping by hand crank. Supplied with: 1 pair grooved jaws rear face smooth, hand crank. Optional extras: Replacement jaws No. 362076, 362077, 362079, swivel base No. 362073. Clamping range b I: 0 72 mm Clamping range b II: 69 147 mm Clamping range b III: 144 220 mm Clamping force: 40 kN Weight: 39 kg Base body height c: 112 mm
