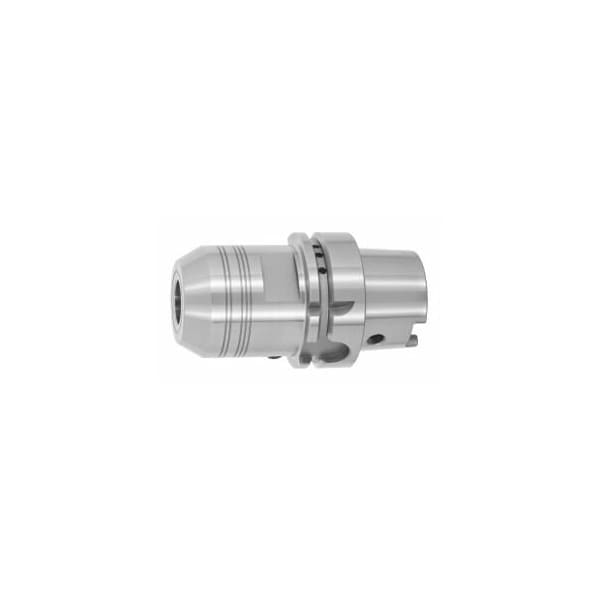

High Torque Hydraulic Chuck, HSK-A 100 Short, Clamping Range: 20mm
- Mfr # 307557 20
- Zoro # G314773222
product price:Â
$
535.99
/ea
Free Shipping & Returns
Key Features
Adjustment Travel
10 mm
Concentricity
≤ 3 µm
Projection
90 mm
Clamping Dia.
20 mm
Taper Size
HSK100A
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 307557 20
- Zoro #
- G314773222
- UPC #
- -
- Country of Origin
- China
Dimensions
- Clamping Dia.
- 20 mm
- Taper Size
- HSK100A
- Outside Dia.
- 52.5 mm
- Length (In.)
- 61 mm
Details
- Adjustment Travel
- 10 mm
- Concentricity
- ≤ 3 µm
- Projection
- 90 mm
- Suitable Reducing Adapter
- 302150; 302155; 302160; 302165
- Item
- Hydraulic clamping chuck
- Balance Quality
- G 2.5 at 25,000 rpm
- Shape
- A
Description
Very high total rigidity due to optimized design. With RFID/Balluffchip bore. Axial length adjustment, adjustment travel 10 mm. Flexible due to use of reducing sleeves. Advantage: Very high transmitted torque 550 Nm, providing high process reliability. Ideal damping characteristics, resulting in optimum surface finishes, increased tool life and spindle protection. Application: Especially for heavy-duty milling. For clamping tools with shank tolerance h6. Supplied with: Hexagon socket drive with T-handle. Optional extras: Coolant tube No. 309880, socket wrench No. 309890, reducing adapters No. 302135 - 302187. Note: Caution in the case of extra-long tools and TPC machining. Clamping Dia D1: 20 mm Overhang dimension A: 90 mm External Dia D: 52.5 mm Reach L1: 61 mm Adjustment travel V: 10 mm suitable reducing adapter: 302150, 302155, 302160, 302165
