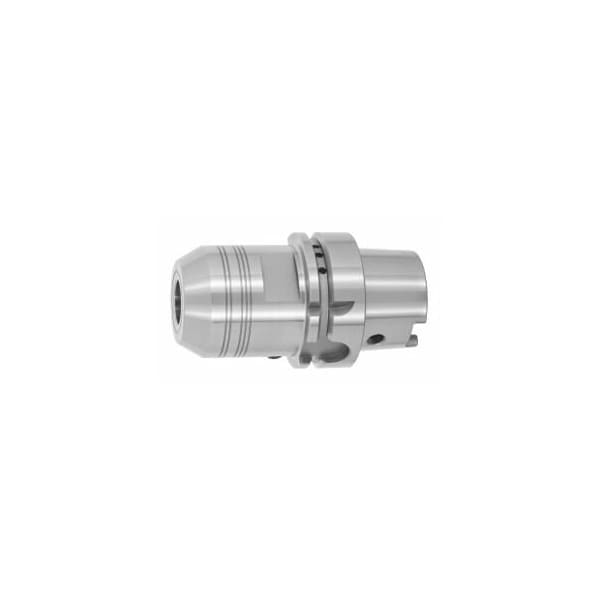

High Torque Hydraulic Chuck, HSK-A 63 Short, Clamping Range: 20mm

  • Mfr # 307552 20
  • Zoro # G314773314
product price:
$
361.99
/ea
Free Shipping & Returns

Key Features

Suitable Reducing Adapter
302150; 302155; 302160; 302165
Taper Size
HSK63A
Concentricity
≤ 3 µm
Shape
A
Balance Quality
G 2.5 at 25,000 rpm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
307552 20
Zoro #
G314773314
UPC #
-
Country of Origin
China
Suitable Reducing Adapter
302150; 302155; 302160; 302165
Concentricity
≤ 3 µm
Item
Hydraulic clamping chuck
Shape
A
Balance Quality
G 2.5 at 25,000 rpm
Adjustment Travel
10 mm
Projection
80 mm

Dimensions

Taper Size
HSK63A
Outside Dia.
52.5 mm
Length (In.)
54 mm
Clamping Dia.
20 mm

Description

Very high total rigidity due to optimized design. With RFID/Balluffchip bore. Axial length adjustment, adjustment travel 10 mm. Flexible due to use of reducing sleeves. Advantage: Very high transmitted torque 550 Nm, providing high process reliability. Ideal damping characteristics, resulting in optimum surface finishes, increased tool life and spindle protection. Application: Especially for heavy-duty milling. For clamping tools with shank tolerance h6. Supplied with: Hexagon socket drive with T-handle. Optional extras: Coolant tube No. 309880, socket wrench No. 309890, reducing adapters No. 302135 - 302187. Note: Caution in the case of extra-long tools and TPC machining. Clamping Dia D1: 20 mm Overhang dimension A: 80 mm External Dia D: 52.5 mm Reach L1: 54 mm Adjustment travel V: 10 mm suitable reducing adapter: 302150, 302155, 302160, 302165
