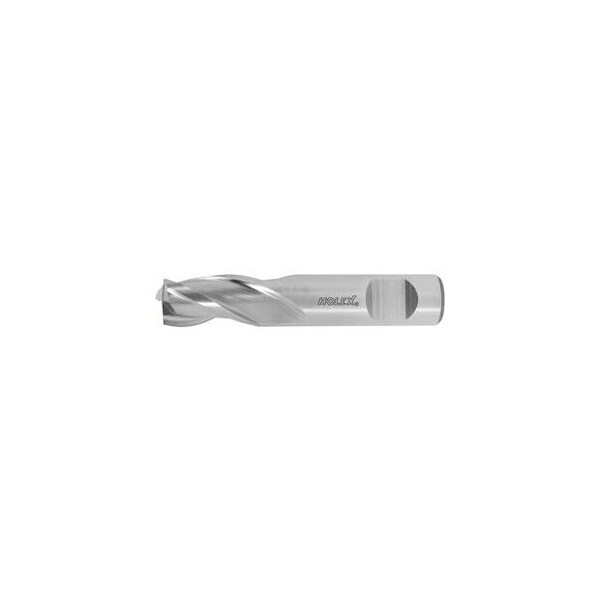

HSS-Co8 Mini Milling Cutter, Uncoated, 2 mm
Mfr # 191360 2
Zoro # G414423249
product price:Â $9.25
/eaKey Features
Milling Diameter
2 mm
Length of Cut
4 mm
Overall Length
35 mm
Shank Dia.
6 mm
Helix Angle
30 deg
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
191360 2
Zoro #
G414423249
UPC #
-
Country of Origin
South Africa
Dimensions
Milling Diameter
2 mm
Length of Cut
4 mm
Overall Length
35 mm
Shank Dia.
6 mm
Maximum Cutting Depth Ap Max When Side Milling
4 mm
Maximum Cutting Depth Ap Max When Slot Milling From Solid
1 mm
Tolerance Nominal Diameter
e8
Min. Cutting Depth
0.01 mm
Details
Helix Angle
30 deg
Shank Type
HB with h6
End Mill Material
High Speed Steel
Cutting Direction
horizontal, oblique and vertical
End Mill Style
Square
Finish
uncoated
Number of Flutes
3
Correction Factor Fz
1.25
Coolant Through
no
Shank Tolerance
h6
Type
N
Color Ring
without
Type of Product
End Mill
Corner Chamfer Angle
90 Degrees
Description
Center cutting teeth for plunging. Eccentric relief ground. Shank similar to DIN 1835 B with shank tolerance h6. General-purpose cutting edge geometry. For use as slot drill or end mill in side lock arbors and collet chucks. High cutting performance, very competitive price. For milling keyways. Note: Save the regrinding costs: it is cheaper to use a mini slot drill to the limit of wear and throw it away, than to regrind it.
