Shop HOLEX

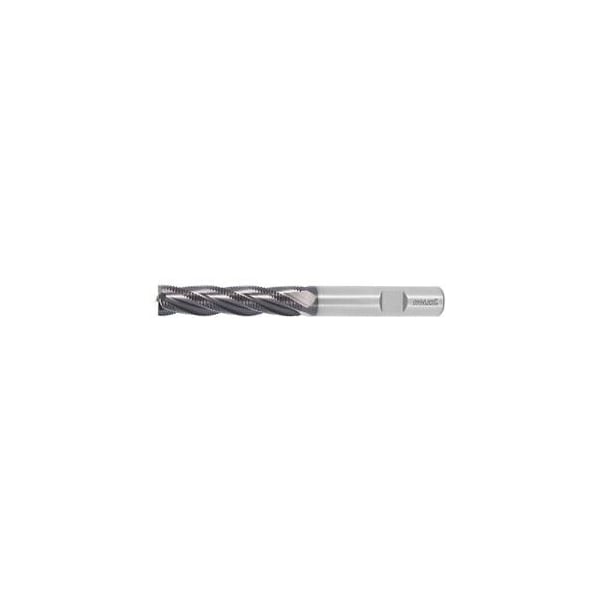

HSS-Co8 Roughing End Mill, TiAlN Coated, 16 mm

  • Mfr # 192930 16
  • Zoro # G514378418
product price:
$
109.99
/ea
Free Shipping & Returns

Key Features

Milling Diameter
16 mm
Length of Cut
63 mm
Overall Length
123 mm
Shank Dia.
16 mm
Helix Angle
30 Degrees
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
192930 16
Zoro #
G514378418
UPC #
-
Country of Origin
China

Dimensions

Milling Diameter
16 mm
Length of Cut
63 mm
Overall Length
123 mm
Shank Dia.
16 mm
Corner Chamfer Width at 45°
0.25 mm
Maximum Cutting Depth Ap Max When Slot Milling From Solid
16 mm
Maximum Cutting Depth Ap Max When Side Milling
63 mm
Cutting Width Ae for Milling Operation
0.15×D for side milling
Min. Cutting Depth
0.25 mm
Tolerance Nominal Diameter
js12

Details

Helix Angle
30 Degrees
Shank Type
DIN 1835 B to h6
End Mill Material
Cobalt High Speed Steel
End Mill Style
Chamfer
Number of Flutes
4
Finish
TiAlN
Cutting Direction
horizontal, oblique and vertical
Correction Factor Fz
1.25
Feed Fz For Side Milling in Steel < 900 N/mm2
0.039 mm
Type of Product
End Mill
Milling profile
HR
Coolant Through
no
Color Ring
without
Shank Tolerance
h6
Standard
DIN 844
Corner Chamfer Angle
45 Degrees
Feed Fz For Side Milling in Steel < 900 N/mm2
0.039 mm

Description

Relief ground fine pitch knuckle form profile. Center cutting teeth for plunging. Economy version.
