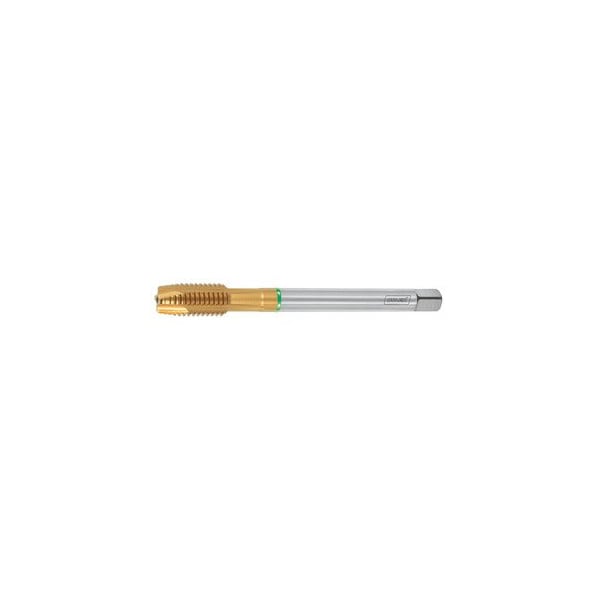

HSS-E Through Hole Machine Tap, M14 Tap Thread Size, TiN Coated
- Mfr # 132680 M14
- Zoro # G409574109
product price:Â
$
60.45
/ea
Key Features
Shank Dia.
11 mm
Tap Material
HSS E
Standard
DIN 376, Thread Standard - DIN 13, DIN 376
Overall Length
110 mm
Thread Direction
Right-Hand
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 132680 M14
- Zoro #
- G409574109
- UPC #
- 4062406373894
- Country of Origin
- Italy
- Item
- Tap
- Tap Material
- HSS E
- Standard
- DIN 376, Thread Standard - DIN 13, DIN 376
- Thread Direction
- Right-Hand
- Number of Flutes
- 4
- Application
- up to 3xD for through Holes
- Thread Type
- Metric Course
- Thread type
- M
- Coolant Through
- No
- Tool Type
- Machine tap for dynamic machining
- Series
- HOLEX Pro Tap
- For Hole Type
- up to 3xD for through holes
- Ring Color
- Green
- Tolerance Class
- ISO 2 6H
- Shank Type
- Plain Shank with h9
- Thread Standards
- DIN 13
- Flank Angle
- 60°
- Finish
- TiN
- Taper Lead Form
- B
- Number of Teeth
- 4
- Taper Lead Angle
- 8°
- Thread Pitch
- 2 mm
- Tolerance
- ISO 2 6H
- Number of Clamping Slots
- 4
Description
With spiral point. Guide section with oil grooves- but without chip flutes. HOLEX Pro Tap general-purpose tap. Sturdy design suitable for a wide spectrum of materials. Improved HSS-E tool material with low-friction TiN coating. Tolerance class: ISO 2 6H Thread type: M Tool material: HSS E Standard: DIN 376 Tolerance class: ISO 2 6H Thread pitch: 2 mm Overall length L: 110 mm Shank dia Ds: 11 mm Shank square : 9 mm Tapping hole dia : 12 mm
