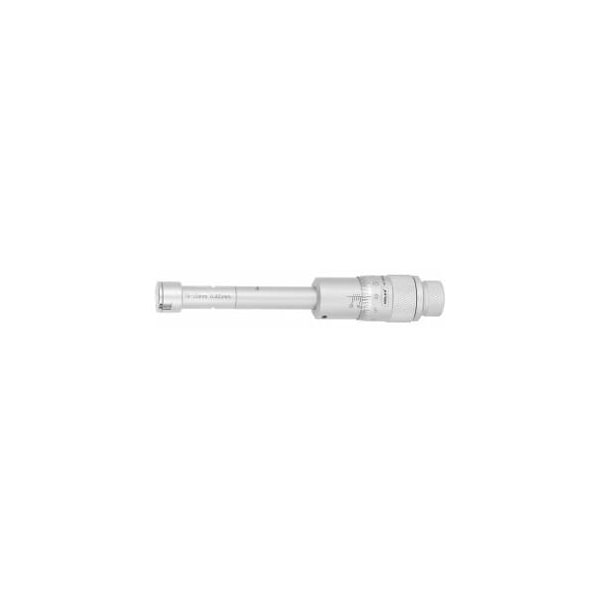

Internal Micrometer, Measuring Range: 16-20 mm
Mfr # 428990 16-20
Zoro # G914556546
product price:Â $509.99
/ea
Free Shipping & Returns
Key Features
Error Limit
0.006 mm
Measuring Range
16 mm - 20 mm
Micrometer Barrel Graduations
1/50 mm
Measurement Technology
analogue
Packaging
sturdy box
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 428990 16-20
- Zoro #
- G914556546
- UPC #
- -
- Country of Origin
- China
Dimensions
- Dimension A
- 0.5 mm
- Setting Ring Dia.
- 16 mm
- Standard Measuring Depth
- 80 mm
- Measuring Depth with Extension
- 230 mm
Details
- Item
- 3-point internal micrometer
- Range
- 16-20 mm
- Error Limit
- 0.006 mm
- Measuring Range
- 16 mm - 20 mm
- Micrometer Barrel Graduations
- 1/50 mm
- Measurement Technology
- analogue
- Packaging
- sturdy box
- Scale Divisions
- 0.005 mm
Description
Satin chrome plated scales and operating parts (from Diameter 12 with carbide jaws). Self-centering micrometer head with 3 measuring jaws (from Diameter 12 with carbide jaws). Supplied with: Setting ring (for adjustment) and extension. Optional extras: Extension No. 428993, setting rings No. 484030.
