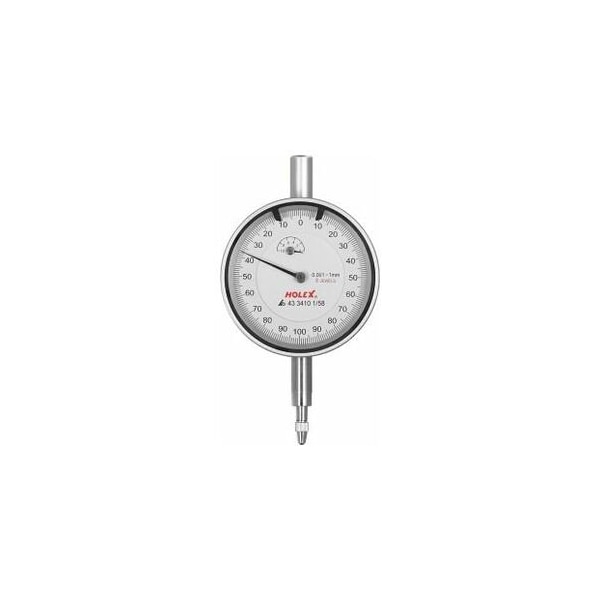

Precision Dial Indicator, Shock-Resistant, Measuring Range / Body Diameter: 1/58 mm
Mfr # 433410 1/58
Zoro # G614556723
product price: $109.99
/ea
Free Shipping & Returns
Key Features
Graduations
0.001 mm
Standards
Manufacturer's standard
Reading per Pointer Revolution
0.2 mm
Measuring Range
1 mm
Max. Permissible Error
5 µm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
433410 1/58
Zoro #
G614556723
UPC #
-
Country of Origin
China
Dimensions
Body Dia.
58 mm
Details
Graduations
0.001 mm
Standards
Manufacturer's standard
Item
dial gauge
Reading per Pointer Revolution
0.2 mm
Measuring Range
1 mm
Max. Permissible Error
5 µm
Measurement Technology
Analogue
Gauging Force
1.5 N
Packaging
sturdy box
Description
Strong, satin chrome plated brass casing, unbreakable dial glass. Clamping shank Diameter 8 mm h6, hardened and ground. High accuracy version. The most important parts of the mechanism are jewel-mounted. Central pointer for 1/1000 mm reading. Outer ring of dial face can be rotated to zero the dial. Nearly constant measuring force over the entire measuring range. Dimensions to DIN EN ISO 463, issue June 2006. Optional extras: Special contact points No. 434900, 434910, 434915.
Documents & Resources
