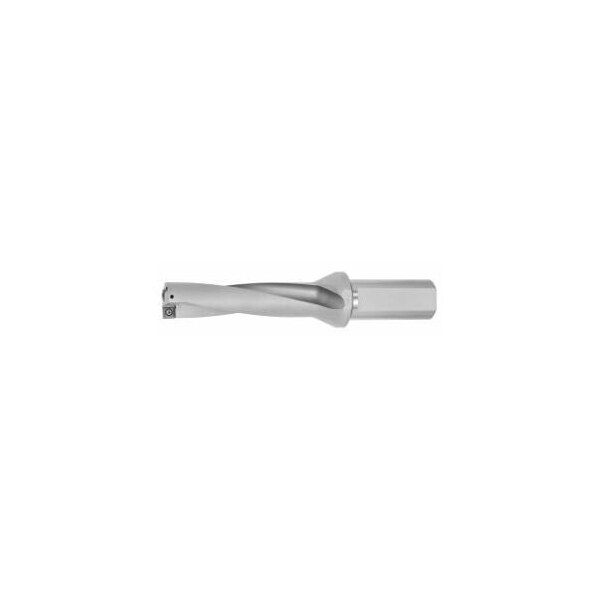

Pro Drill Indexable Drill, 4XD, Diameter: 21 mm
Mfr # 235010 21
Zoro # G615355585
product price: $452.99
/ea
Free Shipping & Returns
Key Features
Diameter
21 mm
Number of Inserts Required
1
Series
HiPer-Drill
Material
Carbide
Application
Drilling through a stack, Limited oblique spot drilling, limited drilling through a stack
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
235010 21
Zoro #
G615355585
UPC #
-
Country of Origin
Korea, Republic of
Dimensions
Diameter
21 mm
Base Body Size
27 mm
Size
27 mm
Details
Item
Cutter insert for boring
Number of Inserts Required
1
Series
HiPer-Drill
Material
Carbide
Application
Drilling through a stack, Limited oblique spot drilling, limited drilling through a stack
Point Angle
160 Deg
Semi-Standard
Yes
Grade
HB3040
No. of Cutting Edges
2
Coating
TiAlN
Description
HOLEX Pro Drill indexable drills combine cost efficiency with technically fully developed capability. For use up to 4xD in challenging drilling applications. Bore tolerance: -0.05 / +0.3 mm Application: With indexable inserts No. 235030 235082. Both SOMT inserts for the outer insert seat and also XOMT inserts for the inner insert seat are required. Supplied with: With insert screws supplied without indexable inserts. Recommendation: When spot-drilling reduce the feed rate to 70%. Overhang LA: 106 mm Shank 0 Ds: 25 mm Shank length Ls: 56 mm Maximum adjustment limit Vmax: 0.3 mm ISO code indexable insert: SOMT070308 / XOMT070305 Pack of insert screws: 232980 3 TX7, 0.8Nm
