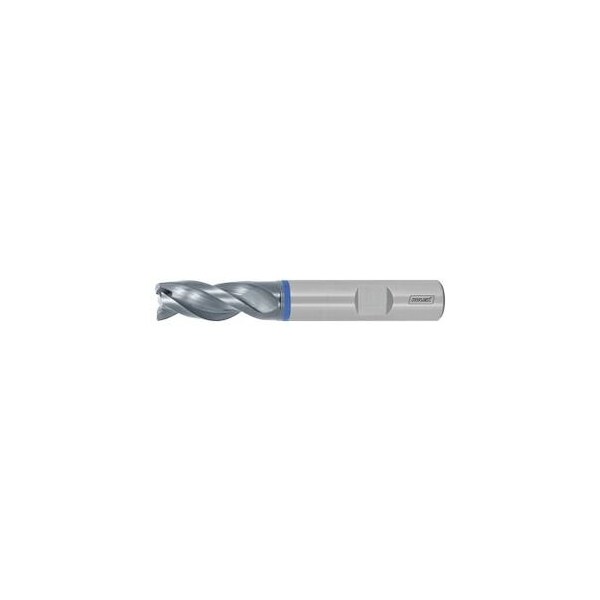

Pro INOX Solid Carbide End Mill for Stainless Steels, AlCrN Coated, 7 mm
Mfr # 202378 7
Zoro # G014381161
product price: $56.59
/eaKey Features
Milling Diameter
7 mm
Overall Length
63 mm
Number of Flutes
3
End Mill Style
Chamfer
Finish
AlCrN
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
202378 7
Zoro #
G014381161
UPC #
-
Country of Origin
Germany
Dimensions
Milling Diameter
7 mm
Overall Length
63 mm
Length of Cut
21 mm
Neck Dia.
6.7 mm
Shank Dia.
8 mm
Maximum Cutting Depth Ap Max When Slot Milling From Solid
7 mm
Tolerance Nominal Diameter
e8
Corner Chamfer Width at 45°
0.2 mm
Maximum Cutting Depth Ap Max When Side Milling
21 mm
Min. Cutting Depth
0.2 mm
Description
HPC milling cutter with newly developed high-performance coating for outstanding tool life and optimum metal removal rate in a wide range of stainless steels. Can be used at high cutting speeds, highly suitable even for steels up to approx. 1100 N/mm2. Tolerance nominal Dia. e8 No. of teeth Z: 3 Helix angle: 35 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 No. of teeth Z: 3 Flute length Lc: 21 mm Overhang length L1 incl. recess: 25 mm Recess Dia. D1: 6.7 mm Overall length L: 63 mm Shank Dia. Ds: 8 mm
