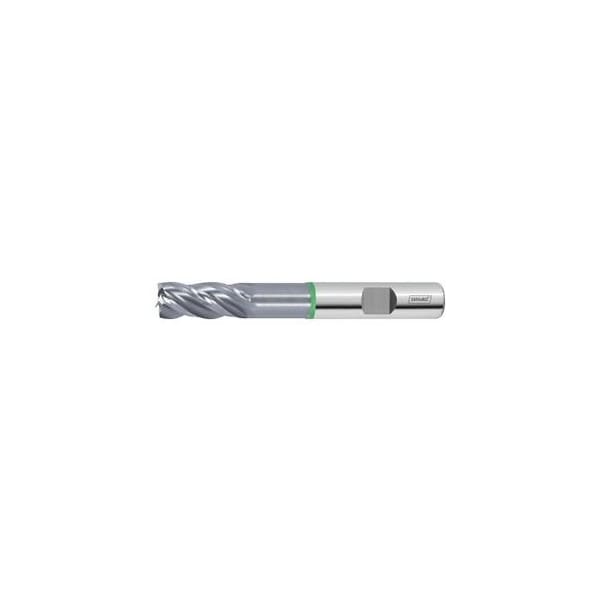

Pro Steel Solid Carbide End Mill, TiAlN Coated, 5 mm
Mfr # 203056 5
Zoro # G314383025
product price: $45.79
/eaKey Features
Milling Diameter
5 mm
Overall Length
62 mm
Number of Flutes
4
End Mill Style
Chamfer
Finish
TiAlN
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
203056 5
Zoro #
G314383025
UPC #
-
Country of Origin
China
Dimensions
Milling Diameter
5 mm
Overall Length
62 mm
Length of Cut
13 mm
Shank Dia.
6 mm
Neck Dia.
4.8 mm
Maximum Cutting Depth Ap Max When Slot Milling From Solid
3.5 mm
Tolerance Nominal Diameter
0 / -0.03
Maximum Cutting Depth Ap Max When Side Milling
13 mm
Min. Cutting Depth
0.28 mm
Corner Chamfer Width at 45°
0.2 mm
Description
For roughing and finishing. Up to 0.7xD into solid material at very high feed rates with smooth cutting action. Advantage: optimized flute form, eccentric relief ground, wide chip space. Tolerance nominal Dia. 0 / -0.03 No. of teeth Z: 4 Helix angle: 38 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 No. of teeth Z: 4 Flute length Lc: 13 mm Overhang length L1 incl. recess: 25 mm Recess Dia. D1: 4.8 mm Overall length L: 62 mm Shank Dia. Ds: 6 mm
