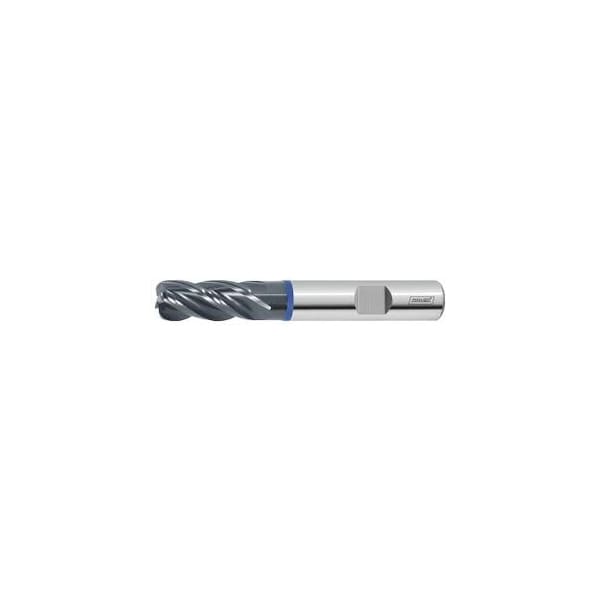

Pro INOX Solid Carbide Torus End Mill, for Stainless Steels, AlCrN Coated, 10/1.0 mm
Mfr # 206348 10/1,0
Zoro # G314381489
product price:Â $107.99
/ea
Free Shipping & Returns
Key Features
Overall Length
72 mm
Milling Diameter
10 mm
Number of Flutes
4
End Mill Style
Corner Radius
Finish
AlCrN
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 206348 10/1,0
- Zoro #
- G314381489
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Overall Length
- 72 mm
- Milling Diameter
- 10 mm
- Length of Cut
- 22 mm
- Maximum Cutting Depth Ap Max When Side Milling
- 22 mm
- Maximum Cutting Depth Ap Max When Slot Milling From Solid
- 0.5 mm
- Min. Cutting Depth
- 0.01 mm
- Tolerance Nominal Diameter
- f8
- Corner Radius
- 1 mm
- Shank Dia.
- 10 mm
- Neck Dia.
- 9.7 mm
Description
Dimensions similar to DIN 6527. HPC milling cutter with newly developed high-performance coating. For outstanding tool life and optimum metal removal rate in a very wide range of stainless steels. For use at high cutting speeds, particularly suitable even for steels up to approx. 1100 N/mm2. No. of teeth Z: 4 Helix angle: 35 degrees Shank: DIN 6535 HB to h6 No. of teeth Z: 4 Flute length Lc: 22 mm Corner radius R1: 1 mm Overhang length L1 incl. recess: 30 mm Recess Dia. D1: 9.7 mm Overall length L: 72 mm
