Hand Tap Drill Bit Set, 18-Piece
Mfr # 5PXJ4
Zoro # G3321683
Key Features
Specifications
Product Information
- MFR #
- 5PXJ4
- Zoro #
- G3321683
- UPC #
- 190735870945
- Country of Origin
- China
Dimensions
- Size Range
- M2.5 to M12
- Tap Sizes
- M2.5x0.45, M3x0.5, M3.5x0.6, M4x0.7, M5x0.8, M6x1.0, M8x1.25, M10x1.5, M12x1.75
- Drill Sizes
- 10.2 mm, 2.05 mm, 2.5 mm, 2.9 mm, 3.3 mm, 4.2 mm, 5.0 mm, 6.7 mm, 8.5 mm
- Tap Dimension Type
- Metric
- Tap Sizes Included
- M10x1.5, M12x1.75, M2.5x0.45, M3.5x0.6, M3x0.5, M4x0.7, M5x0.8, M6x1.0, M8x1.25
- Largest Drill Bit Dia.
- 10.20 mm
- Smallest Thread Size
- M2.5
- Smallest Drill Bit Dia.
- 2.05mm
- Largest Thread Size
- M12
- Drill Bit Dia. Included
- 10.2 mm, 2.05 mm, 2.5 mm, 2.9 mm, 3.3 mm, 4.2 mm, 5.0 mm, 6.7 mm, 8.5 mm
- Tap Drill Size
- 10.2 mm, 2.05 mm, 2.5 mm, 2.9 mm, 3.3 mm, 4.2 mm, 5.0 mm, 6.7 mm, 8.5 mm
- Thread Sizes Included
- M10x1.5, M12x1.75, M2.5x0.45, M3.5x0.6, M3x0.5, M4x0.7, M5x0.8, M6x1, M8x1.25
- Dimensions Standard
- ANSI 94.9
- Drill Bit Sizes Included
- 10.2 mm, 2.05 mm, 2.5 mm, 2.9 mm, 3.3 mm, 4.2 mm, 5 mm, 6.7 mm, 8.5 mm
Description

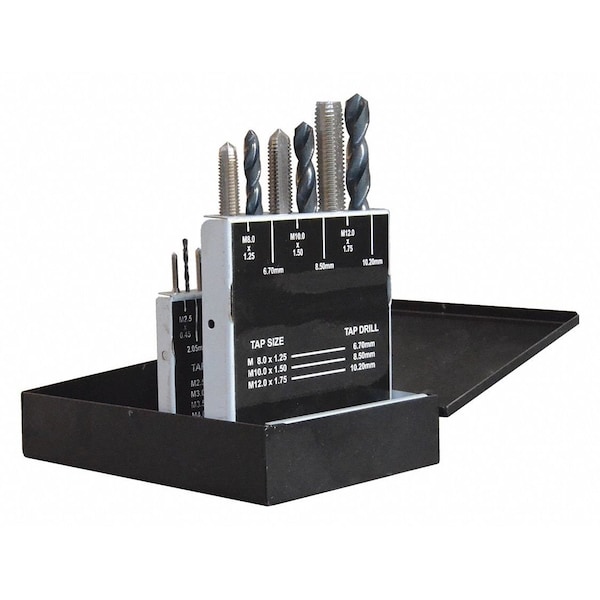

The WESTWARD ZORO SELECT - 5PXJ4 includes drill bits and hand taps for metric thread cutting and drilling applications. This 18-piece set contains nine high speed steel drill bits with black oxide finish and nine high speed steel hand taps with bright, uncoated finish, covering sizes from M2.5 to M12. The included drill bits and taps are for use on the listed workpiece materials: steel, stainless steel, alloyed aluminum, alloyed nickel, and malleable cast iron, and is compatible with metric thread limits D3 through D6 (right-hand threads) with straight flute taps featuring plug chamfers. The drill bits have a 118-degree point angle; the specified pilot hole dimension supports cutting up to 75% of thread height. The tools are organized in a metal index case for organized storage and portability.
Key Features:
- Includes 9 drill bits with diameters ranging from 2.05 mm to 10.20 mm and 9 taps sized M2.5x0.45 to M12x1.75.
- Drill bits and taps manufactured from high speed steel for manufacturing from high speed steel.
- Drill bits finished with black oxide; taps have a bright, uncoated finish.
- Tap design includes 3- and 4-flute straight flute types with plug chamfers.
- Suitable for machining a variety of metals including steel, stainless steel, alloyed aluminum, alloyed nickel, and malleable cast iron.
- Measurement system and thread standard are metric.
- Supplied with a metal index case for organized tool storage.
