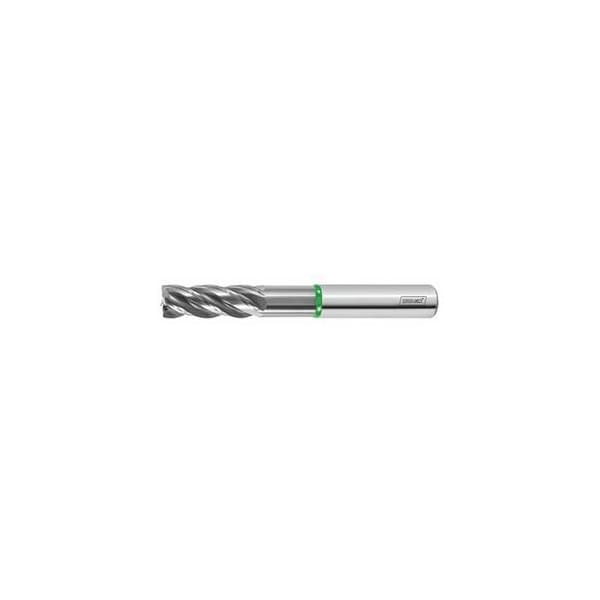

Pro Steel Solid Carbide End Mill, TiAlN Coated, 8 mm
Mfr # 203059 8
Zoro # G914383371
product price: $72.89
/eaGet a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
203059 8
Zoro #
G914383371
UPC #
-
Country of Origin
China
Description
For roughing and finishing. Up to 0.5xD into solid material at very high feed rates with smooth cutting action. Extra-long version for avoiding interference contours. Advantage: optimized flute form, eccentric relief ground, generous chip spaces. Tolerance nominal Dia. 0 / -0.03 No. of teeth Z: 4 Helix angle: 38 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HA to h6 No. of teeth Z: 4 Flute length Lc: 28 mm Overhang length L1 incl. recess: 36 mm Recess Dia. D1: 7.5 mm Overall length L: 80 mm Shank Dia. Ds: 8 mm
