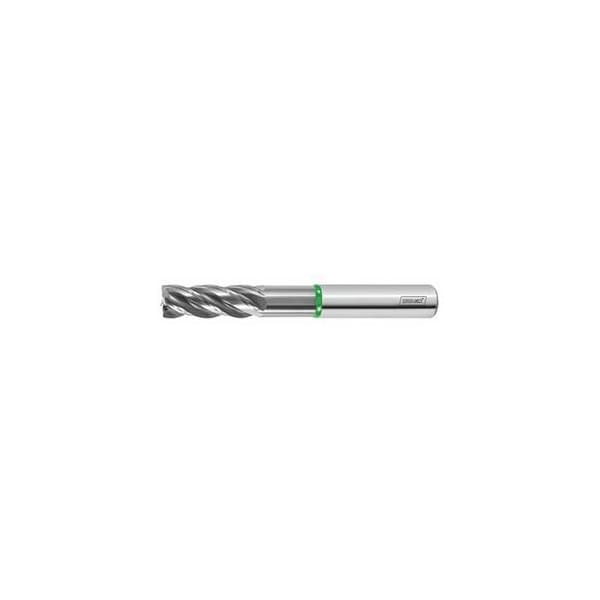

Pro Steel Solid Carbide End Mill, TiAlN Coated, 8 mm
Mfr # 203059 8
Zoro # G914383371
product price:Â
$
72.89
/ea
Key Features
Milling Diameter
8 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 203059 8
- Zoro #
- G914383371
- UPC #
- -
- Country of Origin
- China
Dimensions
- Milling Diameter
- 8 mm
Description
For roughing and finishing. Up to 0.5xD into solid material at very high feed rates with smooth cutting action. Extra-long version for avoiding interference contours. Advantage: optimized flute form, eccentric relief ground, generous chip spaces. Tolerance nominal Dia. 0 / -0.03 No. of teeth Z: 4 Helix angle: 38 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HA to h6 No. of teeth Z: 4 Flute length Lc: 28 mm Overhang length L1 incl. recess: 36 mm Recess Dia. D1: 7.5 mm Overall length L: 80 mm Shank Dia. Ds: 8 mm
