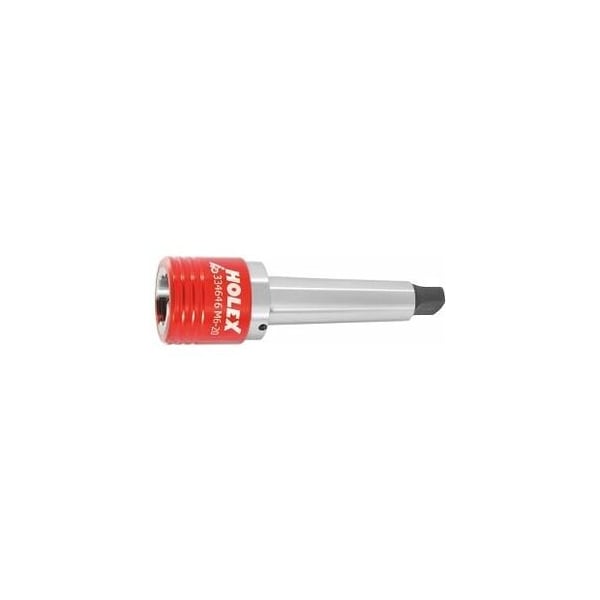

Quick-Change Tapping Chuck, MT4, Tapping Range: M6-20
Mfr # 334646 M6-20
Zoro # G314777015
product price:Â
$
266.99
/ea
Free Shipping & Returns
Key Features
Tapping Range
M6 - M20
Length Compensation By Compression
12.5 mm
Projection
70 mm
Internal Dia.
31 mm
Length Compensation By Tension
12.5 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 334646 M6-20
- Zoro #
- G314777015
- UPC #
- -
- Country of Origin
- India
Dimensions
- Length Compensation By Compression
- 12.5 mm
- Internal Dia.
- 31 mm
- Length Compensation By Tension
- 12.5 mm
- Taper Size
- MT4
- Outside Dia.
- 55 mm
Details
- Tapping Range
- M6 - M20
- Projection
- 70 mm
- Item
- Tapping head
Description
Compact design, with flexible length compensation by compression and tension. Adjustable lead-in pressures for different materials and taps. Morse taper DIN 228 B. Application: To produce threads that are true to gage. For right-hand and left-hand thread. For NC machines and machining Centers. Optional extras: See No. 335420 335660 for quick-change tapping collets. Note: Quick-change tapping heads in other shank types size M14 M33 available on request. Quick-change tapping heads not suitable for internal coolant supply. Length compensation by compression: 12.5 mm Length compensation by tension: 12.5 mm External Dia D: 55 mm Internal Dia D1: 31 mm Overhang dimension A: 70 mm
