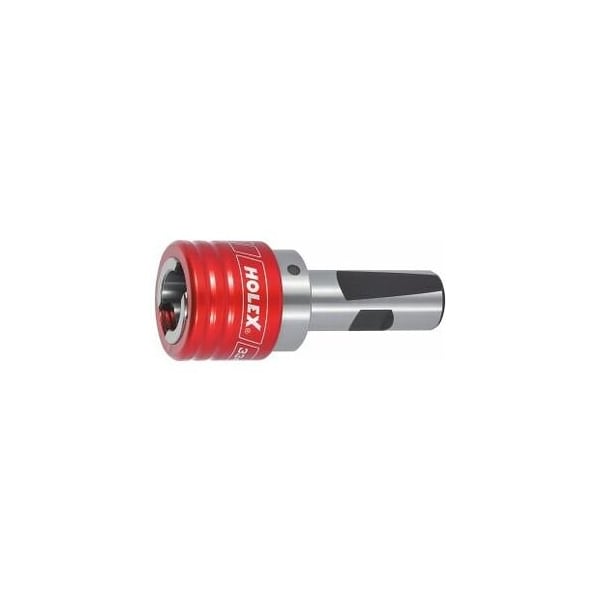

Quick-Change Tapping Chuck, Shank Diameter: 20 mm, Tapping Range: M3-12
Mfr # 334622 M3-12
Zoro # G914777040
product price: $208.99
/ea
Free Shipping & Returns
Key Features
Length Compensation By Compression
7.5 mm
Tapping Range
M3 − M12
Shank Dia.
20 mm
Outside Dia.
38 mm
Projection
41 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
334622 M3-12
Zoro #
G914777040
UPC #
-
Country of Origin
India
Dimensions
Length Compensation By Compression
7.5 mm
Shank Dia.
20 mm
Outside Dia.
38 mm
Length Compensation By Tension
7.5 mm
Internal Dia.
19 mm
Details
Tapping Range
M3 − M12
Projection
41 mm
Item
Tapping head
Description
Compact design, with flexible length compensation by compression and tension. Adjustable lead-in pressures for different materials and taps. Parallel shank to DIN 1835 Form B and E. Application: To produce threads that are true to gage. For right-hand and left-hand thread. For NC machines and machining Centers. Optional extras: See No. 335420 335660 for quick-change tapping collets. Note: Quick-change tapping heads in other shank types size M14 M33 available on request. Quick-change tapping heads not suitable for internal coolant supply. Length compensation by compression: 7.5 mm Length compensation by tension: 7.5 mm External Dia D: 38 mm Internal Dia D1: 19 mm Overhang dimension A: 41 mm
